HEF4051BP,652
IC MUX 8:1 155OHM 16DIPManufacturer: NXP USA Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
NXP USA Inc. HEF4051BP-652 is an 8:1 multiplexer/demultiplexer IC featuring a single circuit. This component offers an on-state resistance of 155 Ohms (maximum) and a -3dB bandwidth of 70MHz, making it suitable for applications in industrial automation and telecommunications. Channel-to-channel matching (?Ron) is specified at 5 Ohms, with channel capacitance (CS(off), CD(off)) at 7.5pF. Crosstalk is rated at -50dB at 1MHz, and leakage current (IS(off)) has a maximum of 200nA. The HEF4051BP-652 operates within a temperature range of -40°C to 85°C and is available in a 16-DIP (0.300", 7.62mm) through-hole mounted package, supplied in tubes. It supports single supply voltages from 3V to 15V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 155Ohm |
| -3db Bandwidth | 70MHz |
| Supplier Device Package | 16-DIP |
| Voltage - Supply, Single (V+) | 3V ~ 15V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -50dB @ 1MHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 5Ohm |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | 7.5pF |
| Current - Leakage (IS(off)) (Max) | 200nA |
| Number of Circuits | 1 |
Request a Quote
Clients Also Buy
NX3L2267GM-Q100X

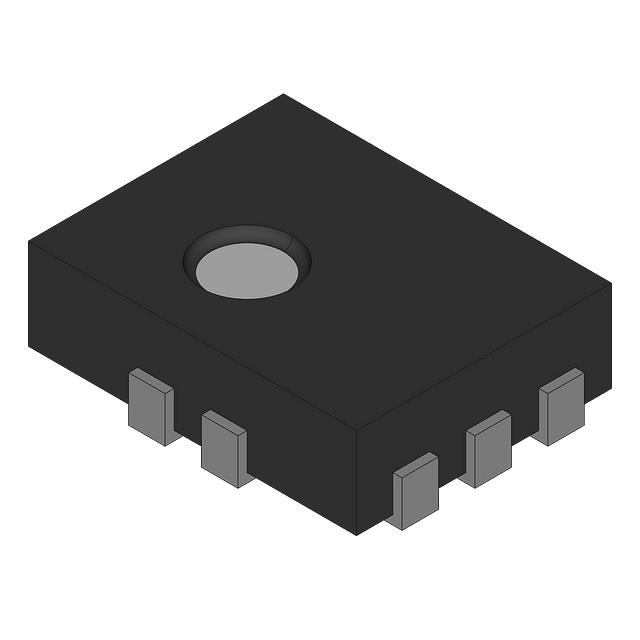

IC SWITCH SPDTX2 750MOHM 10XQFN
