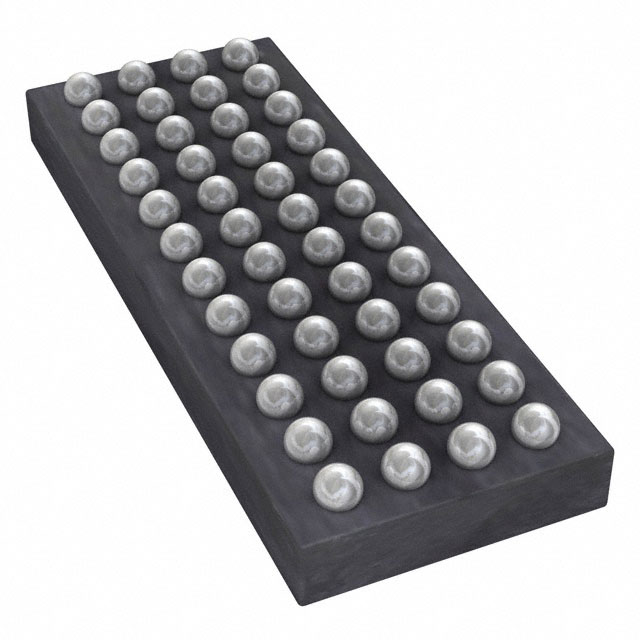

CBTV24DD12ETY
IC SWITCH SPDT X 12 9OHM 48TFBGAManufacturer: NXP USA Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
NXP USA Inc. CBTV24DD12ETY is a 12-circuit SPDT analog switch. This component features a low on-resistance of 9 Ohms, with a channel-to-channel matching of 400 mOhms. The device operates from a single supply voltage ranging from 1.62V to 3.63V and supports a -3dB bandwidth of 7.4GHz. The CBTV24DD12ETY is housed in a 48-TFBGA (3x8) package, suitable for surface mount applications. It is designed for use in demanding applications such as mobile infrastructure, consumer electronics, and automotive systems. The operating temperature range is -10°C to 85°C (TA). The packaging is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TFBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -10°C ~ 85°C (TA) |
| On-State Resistance (Max) | 9Ohm |
| -3db Bandwidth | 7.4GHz |
| Supplier Device Package | 48-TFBGA (3x8) |
| Voltage - Supply, Single (V+) | 1.62V ~ 3.63V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 400mOhm |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | - |
| Number of Circuits | 12 |
