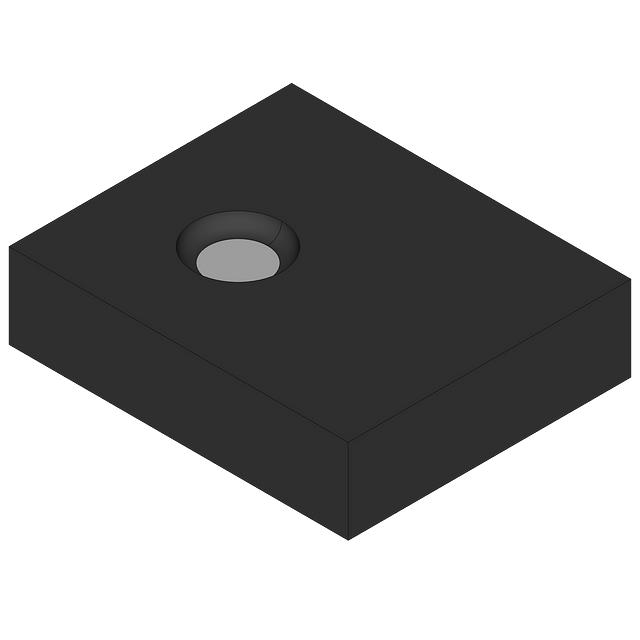

74LVC1G53GS,115
IC SWITCH SPDT X 1 10OHM 8XSONManufacturer: NXP USA Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 2:1 10Ohm 8-XSON (1.35x1)
Additional Information
Series: 74LVCRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 10Ohm |
| -3db Bandwidth | 300MHz |
| Supplier Device Package | 8-XSON (1.35x1) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 7.5pC |
| Crosstalk | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 3.8ns, 3.8ns |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current - Leakage (IS(off)) (Max) | 5µA |
| Number of Circuits | 1 |
