SA56004ATK,118
SENSOR DIGITAL -40C-125C 8HVSONManufacturer: NXP USA Inc.
Categories: Analog and Digital Output
Quality Control: Learn More

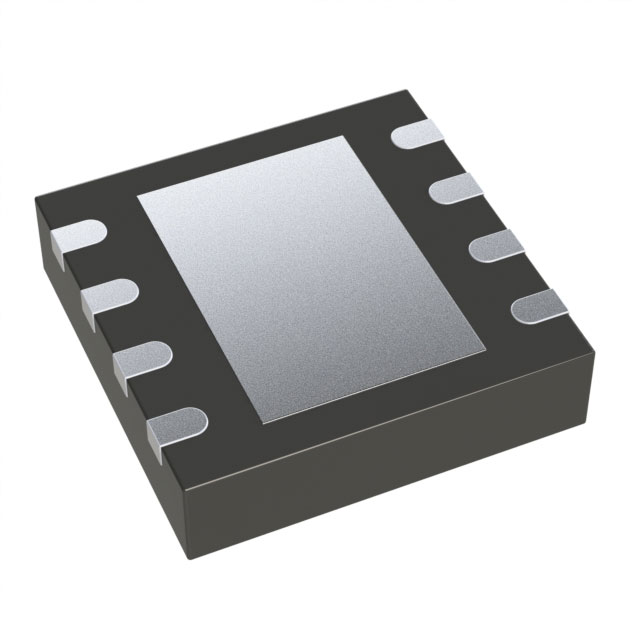

NXP USA Inc. SA56004ATK-118 is a digital local/remote temperature sensor with a sensing range of -40°C to 125°C. This component offers a 10-bit resolution and features an I2C/SMBus output interface. The device is housed in an 8-HVSON (3x3) package, suitable for surface mount applications. Key specifications include an accuracy of ±2°C at typical operating conditions and ±3°C over its full operating temperature range. The SA56004ATK-118 supports a voltage supply range of 3V to 5.5V and includes programmable limit features along with an output switch. This sensor is commonly employed in industrial automation, consumer electronics, and automotive applications requiring precise temperature monitoring. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Output Switch, Programmable Limit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VDFN Exposed Pad |
| Output Type | I2C/SMBus |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Sensor Type | Digital, Local/Remote |
| Resolution | 10 b |
| Supplier Device Package | 8-HVSON (3x3) |
| Test Condition | 60°C ~ 100°C (-40°C ~ 125°C) |
| Accuracy - Highest (Lowest) | ±2°C (±3°C) |
| Sensing Temperature - Local | -40°C ~ 125°C |
| Sensing Temperature - Remote | -40°C ~ 125°C |
