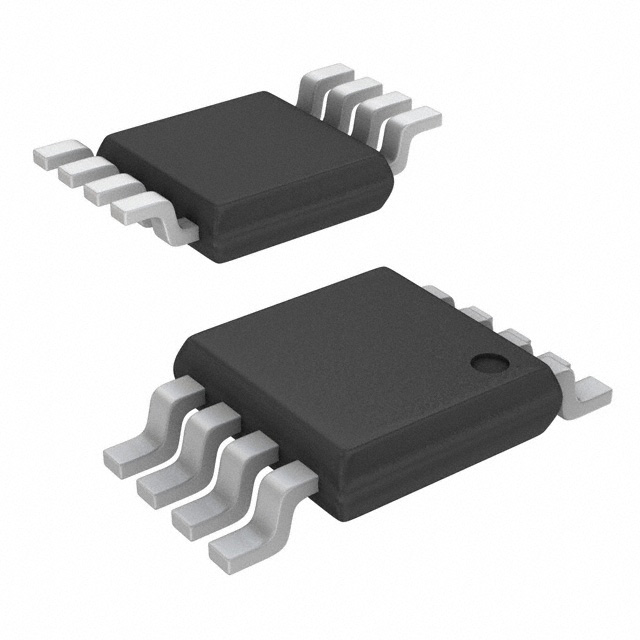

LM75BDP/DG,118
SENSOR DIGITAL -55C-125C 8TSSOPManufacturer: NXP USA Inc.
Categories: Analog and Digital Output
Quality Control: Learn More
NXP USA Inc. offers the LM75BDP-DG-118, a digital temperature sensor with local sensing capabilities. This component operates across a wide temperature range of -55°C to 125°C, providing an 11-bit resolution for precise temperature monitoring. The output interface is I2C, supporting efficient communication in various embedded systems. Key features include a programmable limit and an output switch, enhancing its utility in control applications. The device is available in an 8-TSSOP package, designed for surface mounting. Typical applications span industrial automation, consumer electronics, and medical devices where accurate ambient temperature measurement is critical. Testing conditions confirm performance across -25°C to 100°C and the full -55°C to 125°C range. The supply voltage range is 2.8V to 5.5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Output Switch, Programmable Limit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 2.8V ~ 5.5V |
| Sensor Type | Digital, Local |
| Resolution | 11 b |
| Supplier Device Package | 8-TSSOP |
| Test Condition | -25°C ~ 100°C (-55°C ~ 125°C) |
| Accuracy - Highest (Lowest) | ±2°C (±3°C) |
| Sensing Temperature - Local | -55°C ~ 125°C |
| Sensing Temperature - Remote | - |
