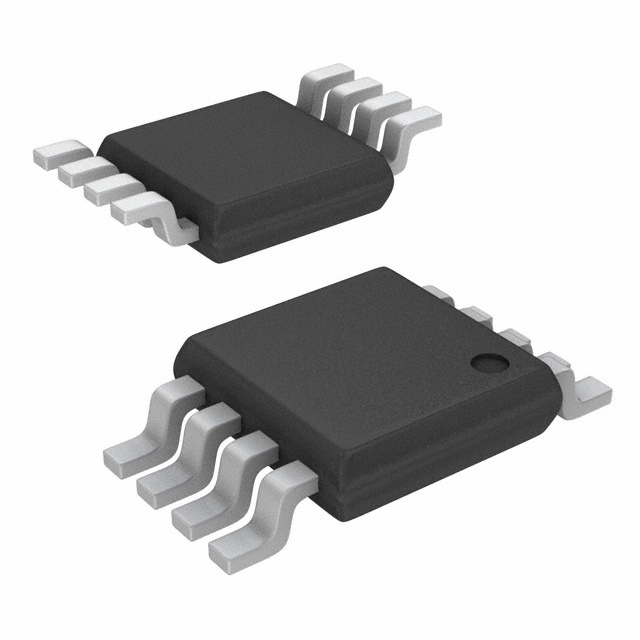

LM75BD,112
SENSOR DIGITAL -55C-125C 8SOManufacturer: NXP USA Inc.
Categories: Analog and Digital Output
Quality Control: Learn More
The NXP USA Inc. LM75BD-112 is a digital local temperature sensor designed for precise thermal monitoring across a wide operating range of -55°C to 125°C. This component features an 11-bit resolution, providing detailed temperature readings with a typical accuracy of ±2°C and a maximum of ±3°C under specified test conditions. Its I2C output interface facilitates seamless integration into various embedded systems. The LM75BD-112 includes programmable limit features and an output switch, enabling flexible system control and fault detection. Packaged in an 8-SOIC (0.154", 3.90mm Width) surface-mount configuration, it is suitable for demanding applications in industrial automation, consumer electronics, and automotive systems. This device operates from a 2.8V to 5.5V supply voltage.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Output Switch, Programmable Limit |
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 2.8V ~ 5.5V |
| Sensor Type | Digital, Local |
| Resolution | 11 b |
| Supplier Device Package | 8-SO |
| Test Condition | -25°C ~ 100°C (-55°C ~ 125°C) |
| Accuracy - Highest (Lowest) | ±2°C (±3°C) |
| Sensing Temperature - Local | -55°C ~ 125°C |
| Sensing Temperature - Remote | - |
