UDA1334BTS/N2,112
IC DAC/AUDIO 24BIT 100K 16SSOPManufacturer: NXP USA Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
NXP USA Inc. UDA1334BTS-N2-112 is a 24-bit audio digital-to-analog converter (DAC) designed for high-fidelity audio applications. This component features an I2S data interface, enabling seamless integration with digital audio processors and microcontrollers. With a sampling rate of up to 100k samples per second, it accurately reproduces audio signals. The device supports three audio channels and operates within a wide supply voltage range of 1.8V to 3.6V, accommodating both analog and digital supply sources. Packaged in a 16-lead SSOP surface-mount configuration, the UDA1334BTS-N2-112 is suitable for compact board designs. Its operating temperature range of -40°C to 85°C ensures reliable performance in demanding environments. This DAC finds application in consumer electronics, automotive audio systems, and professional audio equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

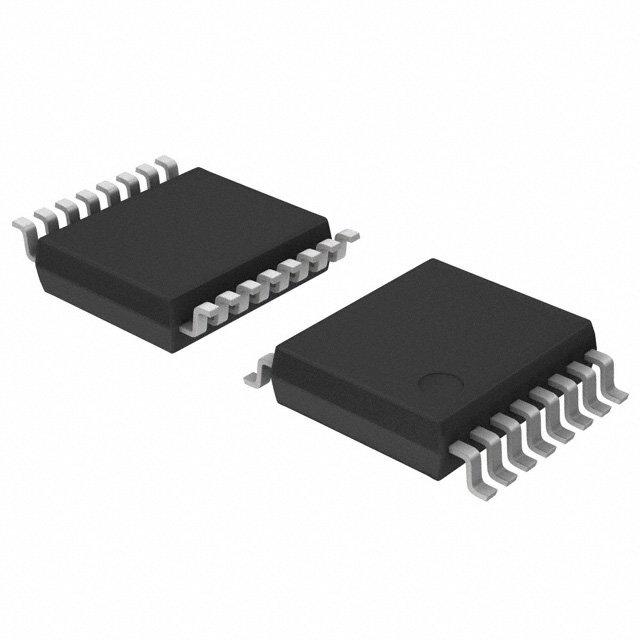

| Package / Case | 16-LSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Type | DAC, Audio |
| Data Interface | I2S |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Sampling Rate (Per Second) | 100k |
| Resolution (Bits) | 24 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 16-SSOP |
| Number of Channels | 3 |
