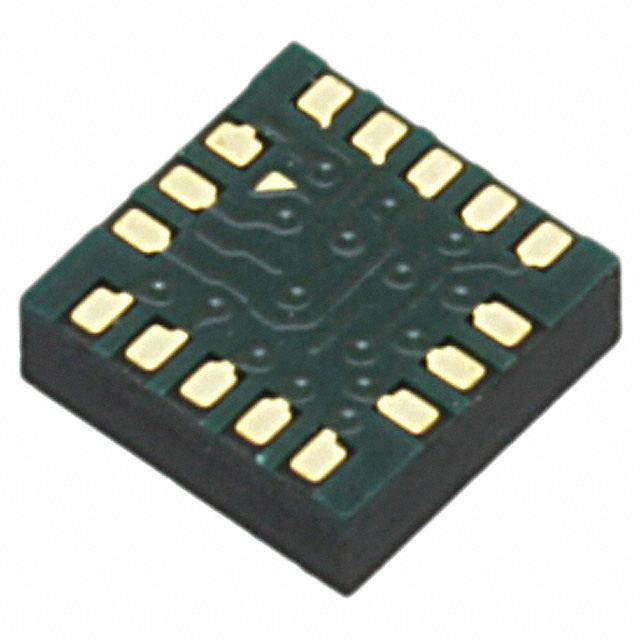

MMA9551LR1
ACCELEROMETER 2-8G I2C/SPI 16LGAManufacturer: NXP USA Inc.
Categories: Accelerometers
Quality Control: Learn More
NXP USA Inc. MMA9551LR1 is a digital accelerometer with X, Y, and Z axis sensing capabilities. This component offers selectable acceleration ranges of ±2g, ±4g, and ±8g, with corresponding sensitivities from 16393 LSB/g down to 4098 LSB/g. The device features an adjustable bandwidth ranging from 1.9Hz to 244Hz, supporting I2C and SPI communication protocols. Additional functionalities include a sleep mode and an integrated temperature sensor. Operating within a voltage supply range of 1.71V to 1.89V, the MMA9551LR1 is housed in a compact 16-LGA (3x3mm) surface-mount package, supplied on tape and reel. This accelerometer is suitable for applications in industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFLGA |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.71V ~ 1.89V |
| Bandwidth | 1.9Hz ~ 244Hz |
| Supplier Device Package | 16-LGA (3x3) |
| Sensitivity (LSB/g) | 16393 (±2g) ~ 4098 (±8g) |
| Sensitivity (mV/g) | - |
