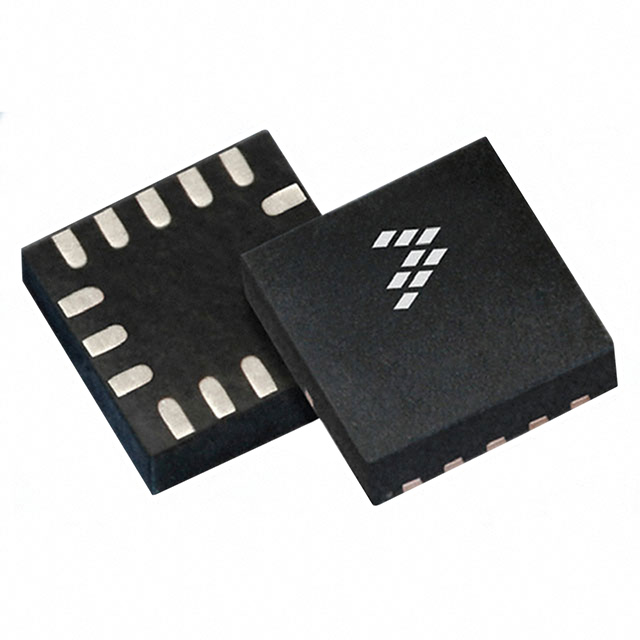

MMA8453QR1
ACCELEROMETER 2-8G I2C 16QFNManufacturer: NXP USA Inc.
Categories: Accelerometers
Quality Control: Learn More
NXP USA Inc. presents the MMA8453QR1, a versatile digital accelerometer designed for precision motion sensing. This 3-axis device offers selectable acceleration ranges of ±2g, ±4g, and ±8g, providing adaptability for various application requirements. Its configurable bandwidth spans from 0.78Hz to 400Hz, enabling fine-tuning for noise reduction or responsiveness. The MMA8453QR1 communicates via an I2C interface and is housed in a compact 16-QFN (3x3) package suitable for surface mounting. Key features include adjustable bandwidth, selectable measurement scales, and a power-saving sleep mode. Operating across a temperature range of -40°C to 85°C, this component finds application in consumer electronics, industrial automation, and automotive systems. The sensitivity is provided as 256 LSB/g at ±2g, scaling down to 64 LSB/g at ±8g.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Selectable Scale, Sleep Mode |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.95V ~ 3.6V |
| Bandwidth | 0.78Hz ~ 400Hz |
| Supplier Device Package | 16-QFN (3x3) |
| Sensitivity (LSB/g) | 256 (±2g) ~ 64 (±8g) |
| Sensitivity (mV/g) | - |
