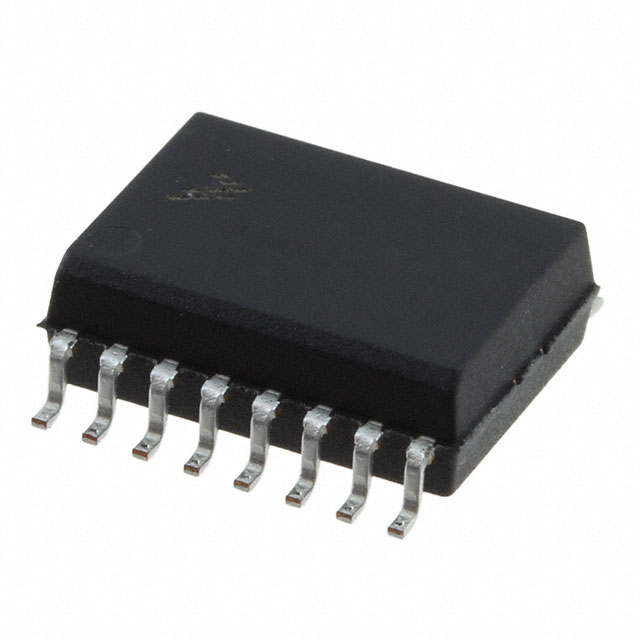

MMA2240KEG
ACCELEROMETER 7G ANALOG 16SOICManufacturer: NXP USA Inc.
Categories: Accelerometers
Quality Control: Learn More
NXP USA Inc. MMA series analog accelerometer, part number MMA2240KEG, offers ±7g acceleration sensing along the X-axis with a 400Hz bandwidth. This AEC-Q100 qualified component is housed in a 16-SOIC package and operates within a voltage range of 4.75V to 5.25V. Featuring an analog voltage output with a typical sensitivity of 300mV/g, the MMA2240KEG is designed for automotive applications requiring robust motion detection. Its surface mount design and a -40°C to 85°C operating temperature range make it suitable for demanding environments in automotive control systems and vehicle dynamics monitoring.
Additional Information
Series: MMARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Type | Analog |
| Axis | X |
| Acceleration Range | ±7g |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Bandwidth | 400Hz |
| Supplier Device Package | 16-SOIC |
| Sensitivity (LSB/g) | - |
| Sensitivity (mV/g) | 300 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
