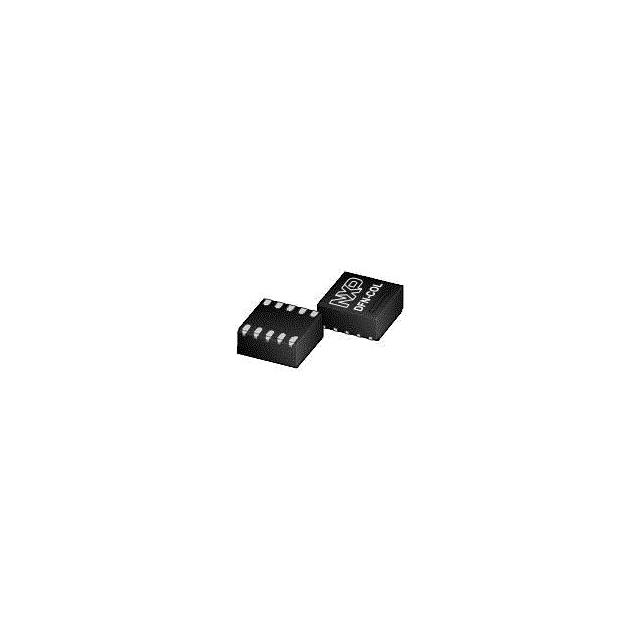

FXLS8964AFR3
ACCELEROMETER 2-16G 10DFNManufacturer: NXP USA Inc.
Categories: Accelerometers
Quality Control: Learn More
The NXP USA Inc. FXLS8964AFR3 is a high-performance, automotive-grade three-axis digital accelerometer designed for demanding applications. This component offers selectable acceleration ranges of ±2g, ±4g, ±8g, and ±16g, with a configurable bandwidth up to 1.6kHz. It features an integrated temperature sensor and supports low-power sleep modes to optimize energy consumption. Communication is facilitated via both I2C and SPI interfaces. The FXLS8964AFR3 is AEC-Q100 qualified and housed in a compact 10-DFN (2x2) surface-mount package, making it suitable for automotive systems, industrial automation, and consumer electronics requiring robust motion sensing capabilities.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Sleep Mode, Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g, 16g |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 1.71V ~ 3.6V |
| Bandwidth | 1.6kHz |
| Supplier Device Package | 10-DFN (2x2) |
| Sensitivity (LSB/g) | 1024 (±2g) ~ 128 (±16g) |
| Sensitivity (mV/g) | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
