TEA19031AQT/1J
IC OFFLINE SWITCH 10SOManufacturer: NXP USA Inc.
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
NXP USA Inc. TEA19031AQT-1J is a high-performance offline switch IC designed for efficient power conversion. Operating at a switching frequency of 10MHz, this component integrates a high-voltage switch, enabling compact and cost-effective power supply designs. The TEA19031AQT-1J features robust fault protection mechanisms including current limiting, overload, over-temperature, and over-voltage protection to ensure system reliability. Its 10-SOIC package facilitates surface mounting, suitable for various applications in consumer electronics, industrial automation, and telecommunications. The device offers a wide input voltage range from 0V to 21V and supports up to 45W of output power with isolated output configurations. Control is managed via the EN pin.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

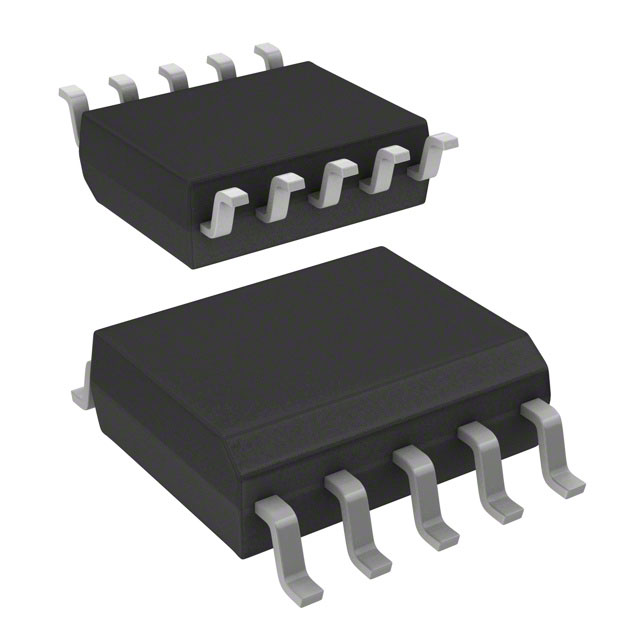

| Package / Case | 10-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Duty Cycle | - |
| Frequency - Switching | 10MHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Output Isolation | Isolated |
| Topology | - |
| Voltage - Supply (Vcc/Vdd) | 0V ~ 21V |
| Supplier Device Package | 10-SO |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | EN |
| Power (Watts) | 45 W |
Request a Quote
Clients Also Buy
TEA1623P/N1,112
IC OFFLINE SWITCH FLYBACK 8DIP

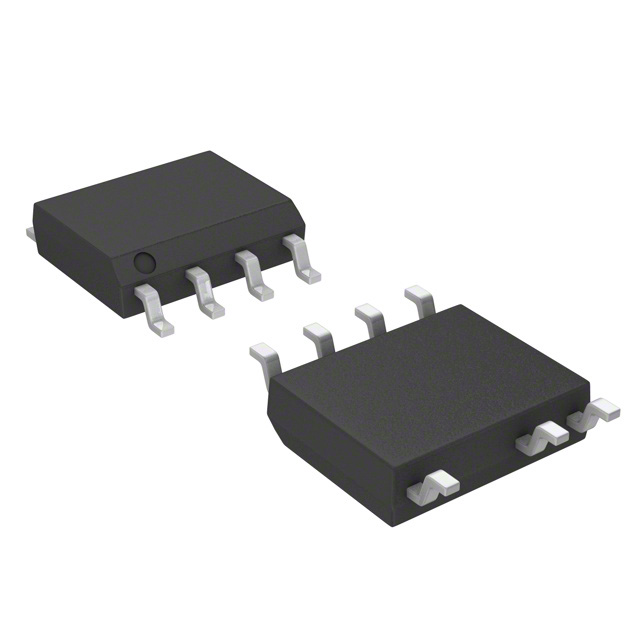

TEA1721AT/N1,118
