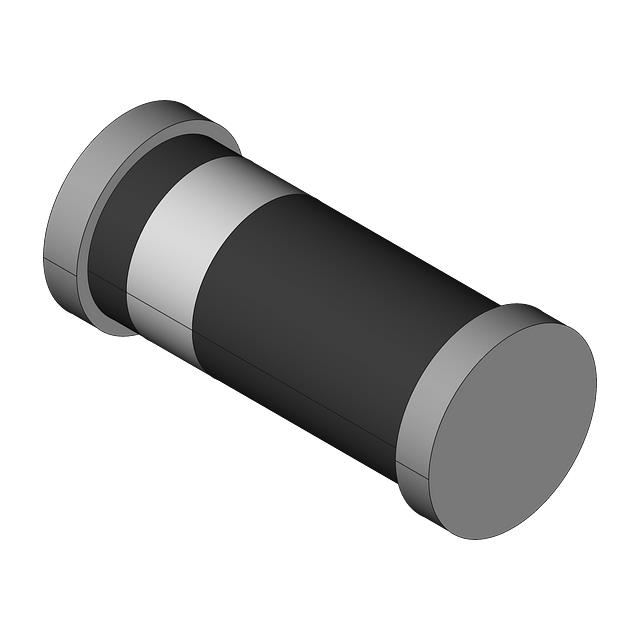

BAS32L,115
DIODE GEN PURP 75V 200MA LLDSManufacturer: NXP Semiconductors
Categories: Single Diodes
Quality Control: Learn More
Diode 75 V 200mA Surface Mount LLDS; MiniMelf
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | LLDS; MiniMelf |
| Operating Temperature - Junction | 200°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
