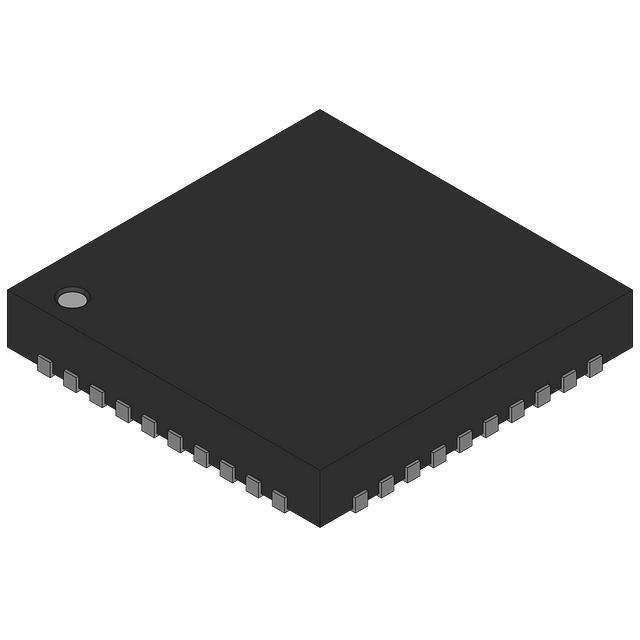

JN5188THN/001Z
IC RF TXRX+MCU 802.15.4 40HVQFNManufacturer: NXP Semiconductors
Categories: RF Transceiver ICs
Quality Control: Learn More
NXP Semiconductors JN5188THN-001Z is a 2.4GHz IEEE 802.15.4 compliant RF transceiver with an integrated microcontroller. This device supports Zigbee® protocol and features a 640kB Flash and 152kB SRAM memory configuration. Operating across a voltage supply range of 1.9V to 3.6V, it offers a transmit power of up to 11.2dBm and a receive sensitivity of -101.3dBm. The JN5188THN-001Z includes 22 GPIO pins and multiple serial interfaces including I2C, SPI, PWM, and UART. Its 40-HVQFN (6x6) exposed pad package facilitates surface mounting. Typical applications for this component span smart home automation, industrial IoT, and wireless sensor networks. The operating temperature range is -40°C to 125°C (TJ). Receiving current is rated at 4.3mA, with transmitting current ranging from 7.36mA to 20.28mA.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 40-VFQFN Exposed Pad |
| Sensitivity | -101.3dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 640kB Flash, 152kB SRAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 1.9V ~ 3.6V |
| Power - Output | 11.2dBm |
| Protocol | Zigbee® |
| Current - Receiving | 4.3mA |
| Data Rate (Max) | - |
| Current - Transmitting | 7.36mA ~ 20.28mA |
| Supplier Device Package | 40-HVQFN (6x6) |
| GPIO | 22 |
| Modulation | - |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | I2C, SPI, PWM, UART |
| Programmable | Not Verified |
