BF1118WR,115
IC RF SWITCH 1GHZ CMPAK-4Manufacturer: NXP Semiconductors
Categories: RF Switches
Quality Control: Learn More

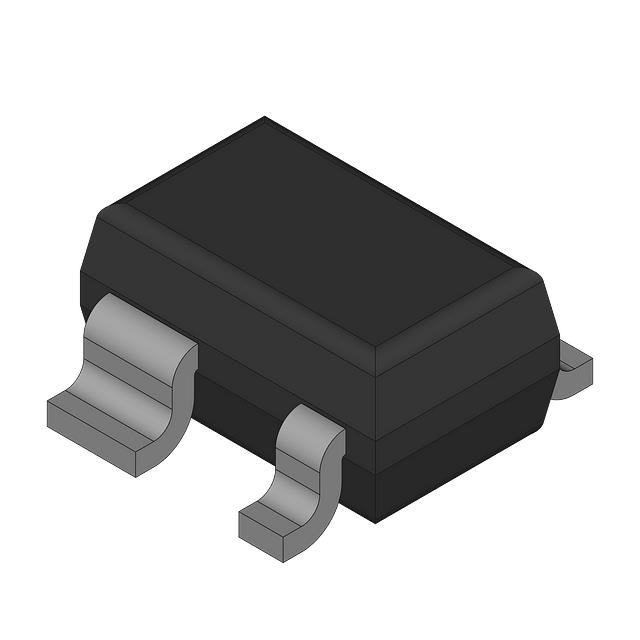

NXP Semiconductors BF1118WR-115 is a general-purpose RF switch IC designed for applications operating within a DC to 1GHz frequency range. This component features a 50 Ohm impedance and is supplied in a CMPAK-4 package, also known as SC-82A or SOT-343. The BF1118WR-115 offers a maximum insertion loss of 2.5dB and a minimum isolation of 30dB, measured at 1GHz. It is rated for an operating temperature of up to 150°C, making it suitable for demanding environments. This RF switch is commonly employed in wireless communication systems, test and measurement equipment, and various radio frequency applications.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | SC-82A, SOT-343 |
| Impedance | 50Ohm |
| Circuit | - |
| RF Type | General Purpose |
| Operating Temperature | 150°C |
| Voltage - Supply | - |
| Insertion Loss | 2.5dB (max) |
| Frequency Range | DC ~ 1GHz |
| Topology | - |
| P1dB | - |
| Test Frequency | 1GHz |
| Isolation | 30dB (min) |
| Supplier Device Package | CMPAK-4 |
| IIP3 | - |
