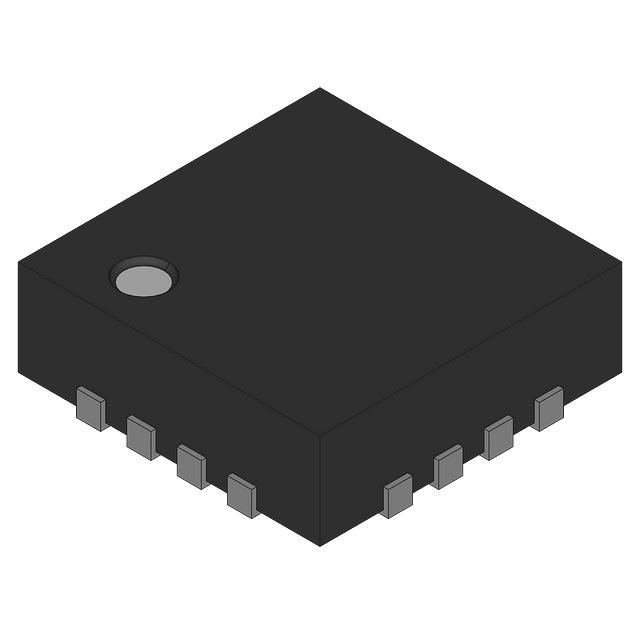

TFF1012HN/N1,115
TFF1012HN - INTEGRATED MIXER OSCManufacturer: NXP Semiconductors
Categories: RF Mixers
Quality Control: Learn More
NXP Semiconductors TFF1012HN is a Ku-Band RF mixer designed for down-conversion applications. Operating within a frequency range of 10.7 GHz to 12.75 GHz, this component features a nominal gain of 30 dB and a noise figure of 9 dB. The TFF1012HN utilizes a single mixer configuration and requires a supply voltage between 4.5V and 5.5V, drawing a typical current of 52mA. It is supplied in a 16-DHVQFN (2.5x3.5) package, suitable for surface mounting. This device is relevant for applications in satellite communications and other high-frequency RF systems.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 10.7GHz ~ 12.75GHz |
| RF Type | Ku-Band |
| Voltage - Supply | 4.5V ~ 5.5V |
| Gain | 30dB |
| Current - Supply | 52mA |
| Secondary Attributes | Down Converter |
| Noise Figure | 9dB |
| Number of Mixers | 1 |
| Supplier Device Package | 16-DHVQFN (2.5x3.5) |
