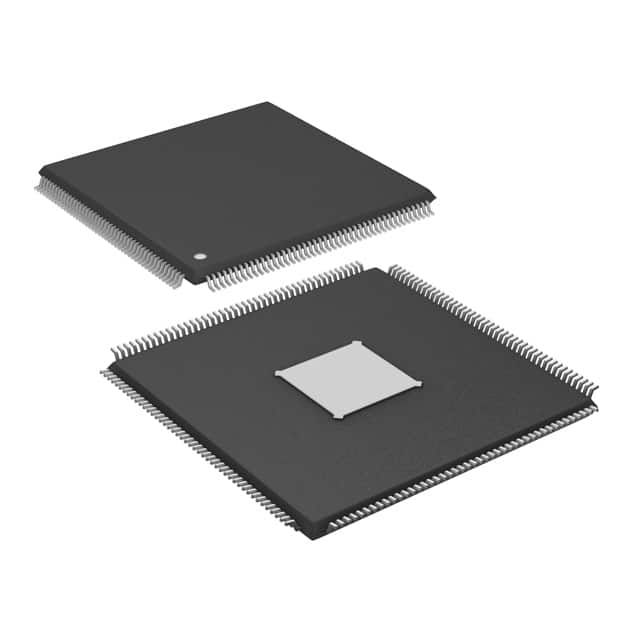

MVF30NN151CKU26
IC MPU VYBRID 266MHZ 176HLQFPManufacturer: NXP Semiconductors
Categories: Microprocessors
Quality Control: Learn More
NXP Semiconductors Vybrid, VF3xx series ARM Cortex-A5 microprocessor, part number MVF30NN151CKU26. This 32-bit, single-core processor operates at 266MHz and features an integrated ARM Cortex-M4 co-processor for multimedia tasks. Housed in a 176-HLQFP (24x24) surface-mount package, it offers extensive connectivity including dual 10/100Mbps Ethernet ports, USB 2.0 OTG with PHY, CANbus, I2C, IrDA, SCI, SDHC, and SPI/UART/USART interfaces. The component supports DDR3, DRAM, and LPDDR2 memory controllers and includes graphics acceleration capabilities with DCU, GPU, LCD, VideoADC, and VIU controllers. Designed for operation within a -40°C to 85°C ambient temperature range, this device is suitable for applications in industrial automation, automotive infotainment, and consumer electronics.
Additional Information
Series: Vybrid, VF3xxRoHS Status: unknownManufacturer Lead Time: Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 176-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 266MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM® Cortex®-A5 |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 176-HLQFP (24x24) |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 OTG + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | ARM® Cortex®-M4, Multimedia; NEON™ MPE |
| RAM Controllers | DDR3, DRAM, LPDDR2 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | DCU, GPU, LCD, VideoADC, VIU |
| Security Features | - |
| SATA | - |
| Additional Interfaces | CANbus, I2C, IrDA, SCI, SDHC, SPI, UART/USART |
Request a Quote
