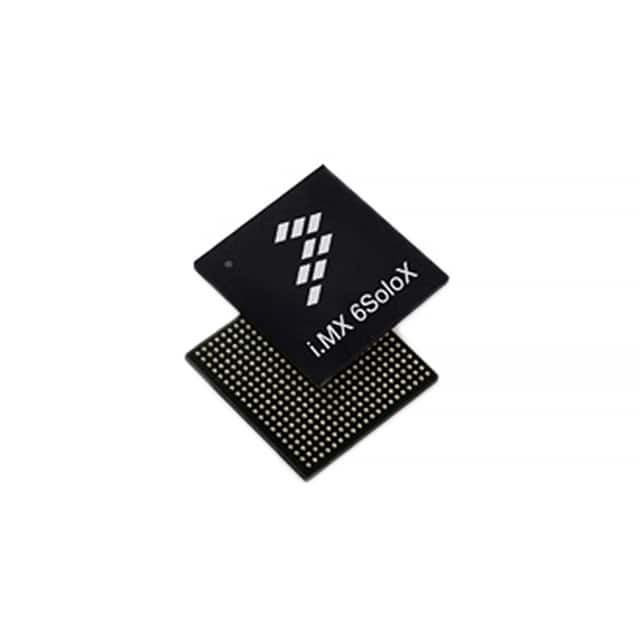

MCIMX6X1CVK08AB
IC MPU 200MHZ/800MHZ 400MAPBGAManufacturer: NXP Semiconductors
Categories: Microprocessors
Quality Control: Learn More
ARM® Cortex®-A9, ARM® Cortex®-M4 Microprocessor IC - 2 Core, 32-Bit 200MHz, 800MHz 400-MAPBGA (14x14)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 400-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz, 800MHz |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Core Processor | ARM® Cortex®-A9, ARM® Cortex®-M4 |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.15V |
| Supplier Device Package | 400-MAPBGA (14x14) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | DDR3, LPDDR2, LVDDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Security Features | A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE |
| SATA | - |
| Additional Interfaces | AC'97, CANbus, I2C, I2S, MLB, MMC\/SD\/SDIO, PCIe, SAI, SPDIF, SPI, SSI, UART, VADC |
