MPC5123VY300B
RISC Microprocessor, 32-Bit, 300MHz, CMOS, PBGA516Manufacturer: NXP Semiconductors
Categories: Microprocessors
Quality Control: Learn More
NXP Semiconductors MPC5123 series 32-bit RISC microprocessor, part number MPC5123VY300B, operates at 300MHz. This component features integrated cache, low-power modes, and Boundary Scan support. It is fabricated using advanced CMOS technology and housed in a 516-ball PBGA (Plastic Ball Grid Array) package with a 1.00mm terminal pitch and a square footprint measuring 27mm x 27mm. The operating temperature range is 0°C to 70°C, with a nominal supply voltage of 1.40V (1.33V to 1.47V). This microprocessor is suitable for applications in automotive, industrial automation, and consumer electronics where high-performance processing and power efficiency are critical.
Additional Information
Series: MPC5123RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: Active-UnconfirmedPackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Format | Fixed Point |
| Length | 27.0000 |
| Speed | 300.00000000 |
| Width | 27.0000 |
| Technology | CMOS |
| Address_Bus_Width | 0 |
| Bit_Size | 32 |
| Boundary_Scan | Yes |
| External_Data_Bus_Width | 0 |
| Integrated_Cache | Yes |
| JESD_30_Code | S-PBGA-B516 |
| Low_Power_Mode | Yes |
| Number_of_Terminals | 516 |
| Operating_Temperature_Max | 70.0000 |
| Operating_Temperature_Min | 0.0000 |
| Package_Body_Material | PLASTIC/EPOXY |
| Package_Code | BGA |
| Package_Equivalence_Code | BGA516,26X26,40 |
| Package_Shape | Square |
| Package_Style | GRID ARRAY |
| Seated_Height_Max | 2.5500 |
| Supply_Voltage_Max | 1.4700 |
| Supply_Voltage_Min | 1.3300 |
| Supply_Voltage_Nom | 1.4000 |
| Surface_Mount | Yes |
| Terminal_Form | Ball |
| Terminal_Pitch | 1.000 |
| Terminal_Position | Bottom |
| uPs_uCs_Peripheral_ICs_Type | MICROPROCESSOR, RISC |
Request a Quote
Clients Also Buy

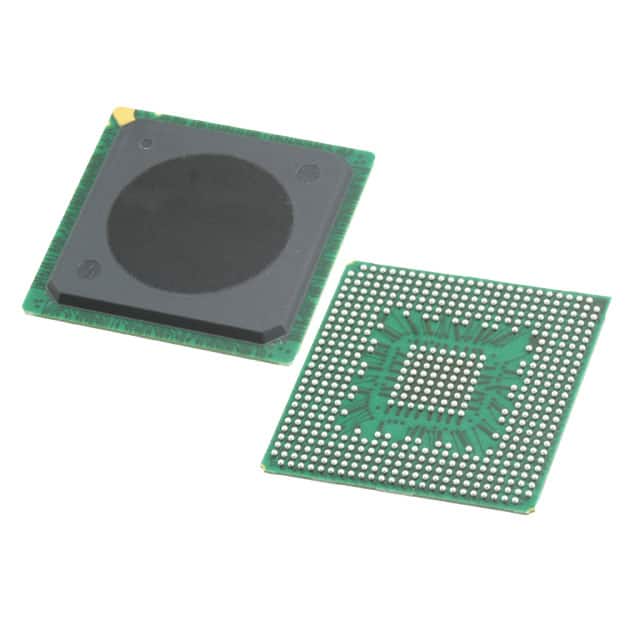

SPC5123YVY400B
