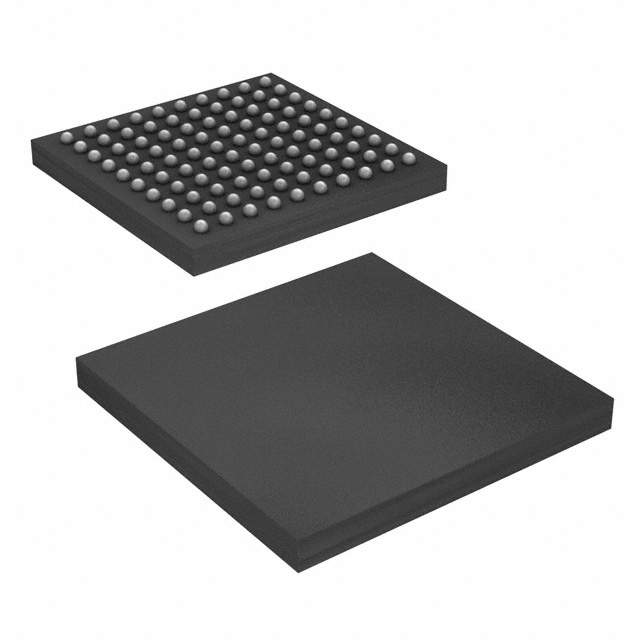

SPC5746CHK1AMMH6
IC MCU 32BIT 3MB FLASH 100MAPBGAManufacturer: NXP Semiconductors
Categories: Microcontrollers
Quality Control: Learn More
NXP Semiconductors MPC57xx Series SPC5746CHK1AMMH6 is a 32-bit dual-core microcontroller featuring e200z2 and e200z4 cores. This device operates at speeds of 80MHz and 160MHz, offering 3MB of FLASH program memory and 384KB of RAM. It includes comprehensive connectivity options such as CANbus, Ethernet, FlexRay, I2C, LINbus, SAI, and SPI. The SPC5746CHK1AMMH6 is equipped with multiple data converters, including 68 channels of 10-bit and 31 channels of 12-bit SAR ADCs, along with 128KB of EEPROM. Peripherals include DMA, I2S, LVD/HVD, POR, and WDT. The microcontroller is available in a 100-MAPBGA (11x11) surface mount package suitable for operating temperatures from -40°C to 125°C. This component is utilized in automotive applications. The supply voltage range is 3.15V to 5.5V.
Additional Information
Series: MPC57xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 100-LBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz, 160MHz |
| Program Memory Size | 3MB (3M x 8) |
| RAM Size | 384K x 8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External |
| Program Memory Type | FLASH |
| EEPROM Size | 128K x 8 |
| Core Processor | e200z2, e200z4 |
| Data Converters | A/D 68x10b, 31x12b SAR |
| Core Size | 32-Bit Dual-Core |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 5.5V |
| Connectivity | CANbus, Ethernet, FlexRay, I2C, LINbus, SAI, SPI |
| Peripherals | DMA, I2S, LVD/HVD, POR, WDT |
| Supplier Device Package | 100-MAPBGA (11x11) |
| Number of I/O | 65 |
| Programmable | Not Verified |
