MC9S08SH4CSC

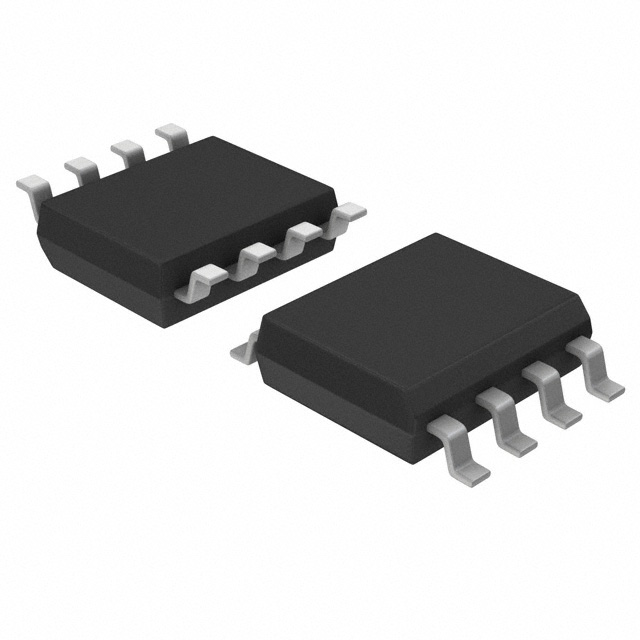

IC MCU 8BIT 4KB FLASH 8SOICManufacturer: NXP Semiconductors
Categories: Microcontrollers
Quality Control: Learn More
NXP Semiconductors HCS08 S08 series microcontroller, part number MC9S08SH4CSC. This 8-bit microcontroller features a 40MHz HCS08 core, 4KB of FLASH program memory, and 256 bytes of RAM. It includes an integrated 4-channel, 10-bit SAR Analog-to-Digital converter. Connectivity options include I2C and LINbus protocols. Peripherals include LVD, POR, PWM, and WDT. The MC9S08SH4CSC is housed in an 8-SOIC (0.154", 3.90mm Width) surface mount package and operates within a voltage range of 2.7V to 5.5V. It is designed for applications requiring robust control and communication capabilities, with an operating temperature range of -40°C to 85°C. This component is commonly found in automotive and industrial automation applications.
Additional Information
Series: S08RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Speed | 40MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | HCS08 |
| Data Converters | A/D 4x10b SAR |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, LINbus |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 8-SOIC |
| Number of I/O | 5 |
| Programmable | Not Verified |
