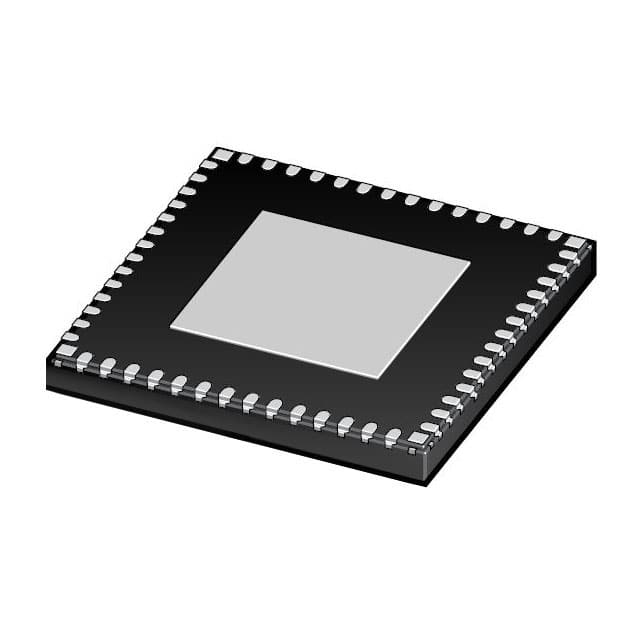

MC33PF8200D2ES
MC33PF8200D2ES - Power ManagemenManufacturer: NXP Semiconductors
Categories: Linear + Switching
Quality Control: Learn More
PMIC - Voltage Regulators - Linear Switching 11 Output Step-Down (Buck) (7), Linear (LDO) (4) 2.5MHz 56-HVQFN (8x8)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 56-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Voltage - Supply | 2.7V ~ 5.5V |
| Frequency - Switching | 2.5MHz |
| Topology | Step-Down (Buck) (7), Linear (LDO) (4) |
| Supplier Device Package | 56-HVQFN (8x8) |
| Voltage/Current - Output 1 | 0.4V ~ 1.8V, 2.5A |
| Voltage/Current - Output 2 | 0.4V ~ 1.8V, 2.5A |
| Voltage/Current - Output 3 | 0.4V ~ 1.8V, 2.5A |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | Yes |
| Number of Outputs | 11 |
Request a Quote
Clients Also Buy

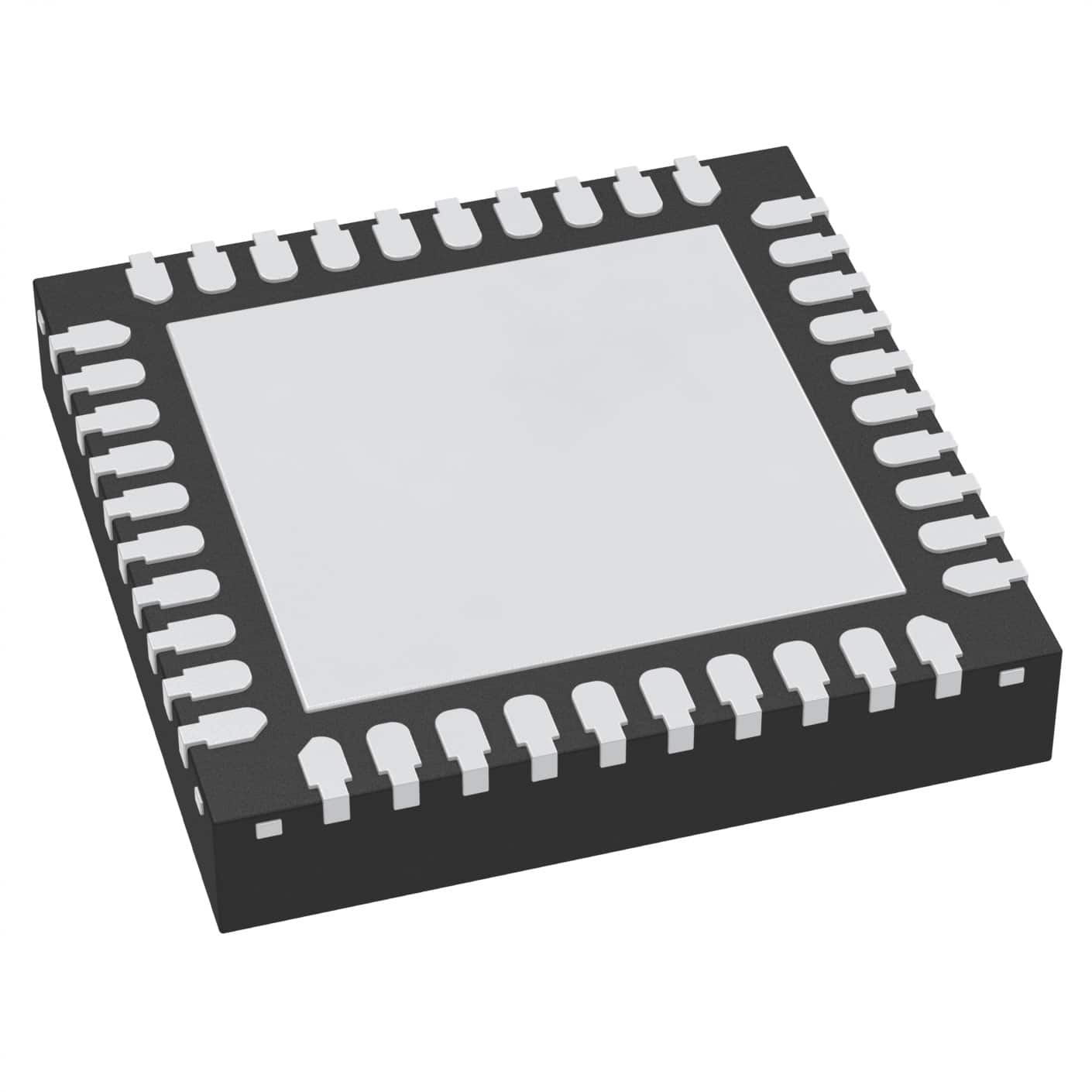

MC32PF1510A2EP
