933999390512
FIFO, 64X4, 108ns, Asynchronous, CMOS, PDSO16Manufacturer: NXP Semiconductors
Categories: FIFOs
Quality Control: Learn More

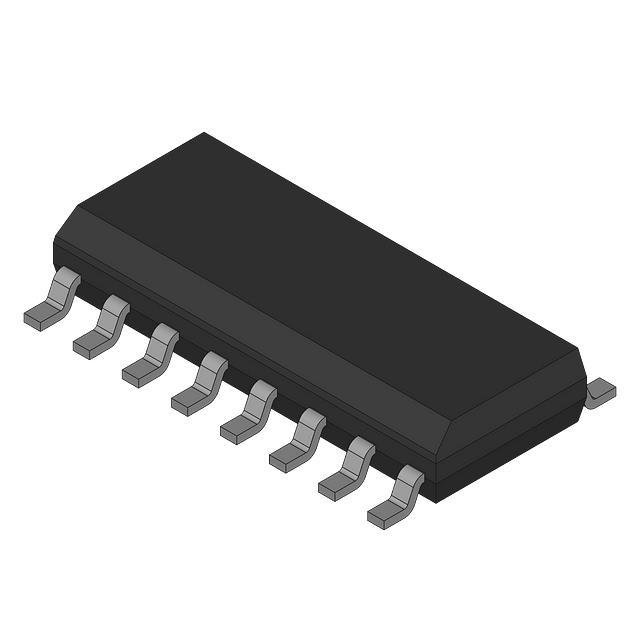

NXP Semiconductors 74HCT7403 asynchronous FIFO buffer with a 64x4 memory organization. This CMOS device offers a maximum access time of 108ns and operates with a nominal supply voltage of 5V, ranging from 4.5V to 5.5V. The 16-terminal PDSO package (R-PDSO-G16) is surface-mountable and features gull-wing terminals with a 1.27mm pitch. Key characteristics include a register-based design with bubble-back functionality at 2.7µs and an output enable. This component is suitable for applications in industrial automation, telecommunications, and consumer electronics requiring efficient data buffering and synchronization. The operating temperature range is -40°C to +125°C.
Additional Information
Series: 74HCT7403RoHS Status: Manufacturer Lead Time: Product Status: DiscontinuedPackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Length | 10.3000 |
| Width | 7.5000 |
| Technology | CMOS |
| Access_Time_Max | 108.0000000000000000 |
| Additional_Feature | REGISTER BASED; BUBBLE BACK 2.7US |
| Cycle_Time | 83.3300000000000000 |
| JESD_30_Code | R-PDSO-G16 |
| Memory_Density | 256.0000000000000000 |
| Memory_Organization | 64X4 |
| Memory_Width | 4 |
| Number_of_Functions | 1 |
| Number_of_Terminals | 16 |
| Number_of_Words | 64.0000000000000000 |
| Number_of_Words_Code | 64 |
| Operating_Mode | Asynchronous |
| Operating_Temperature_Max | 125.0 |
| Operating_Temperature_Min | -40.0 |
| Output_Enable | Yes |
| Package_Body_Material | PLASTIC/EPOXY |
| Package_Code | SOP |
| Package_Shape | Rectangular |
| Package_Style | SMALL OUTLINE |
| Parallel_Serial | Parallel |
| Seated_Height_Max | 2.6500 |
| Supply_Voltage_Max | 5.50000 |
| Supply_Voltage_Min | 4.50000 |
| Supply_Voltage_Nom | 5 |
| Surface_Mount | Yes |
| Terminal_Form | Gull Wing |
| Terminal_Pitch | 1.270 |
| Terminal_Position | Dual |
