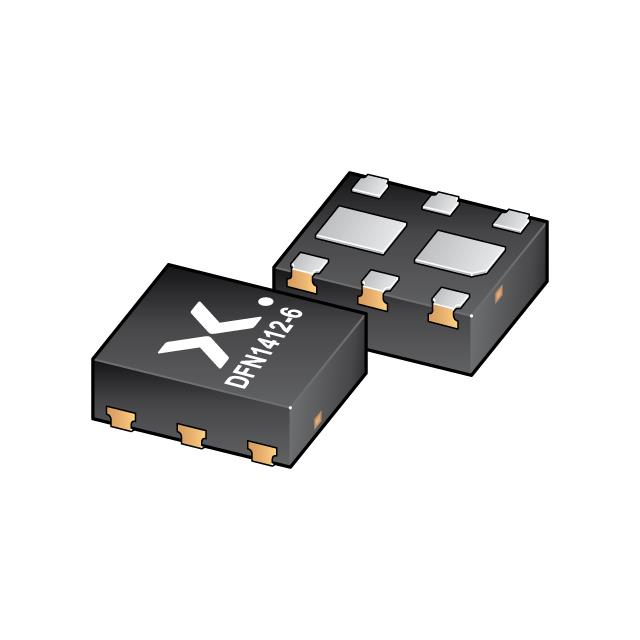

BC817RA147
BC817RA - SMALL SIGNAL BIPOLAR TManufacturer: NXP Semiconductors
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Bipolar (BJT) Transistor Array 2 NPN 45V 500mA 100MHz 500mW Surface Mount DFN1412-6
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-XFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Transistor Type | 2 NPN |
| Operating Temperature | 150°C (TJ) |
| Power - Max | 500mW |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 45V |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 100mA, 1V |
| Frequency - Transition | 100MHz |
| Supplier Device Package | DFN1412-6 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
