AKL002-12
MAGNETIC SWITCH SPEC PURP 8TDFNManufacturer: NVE Corp/Sensor Products
Categories: Switches (Solid State)
Quality Control: Learn More

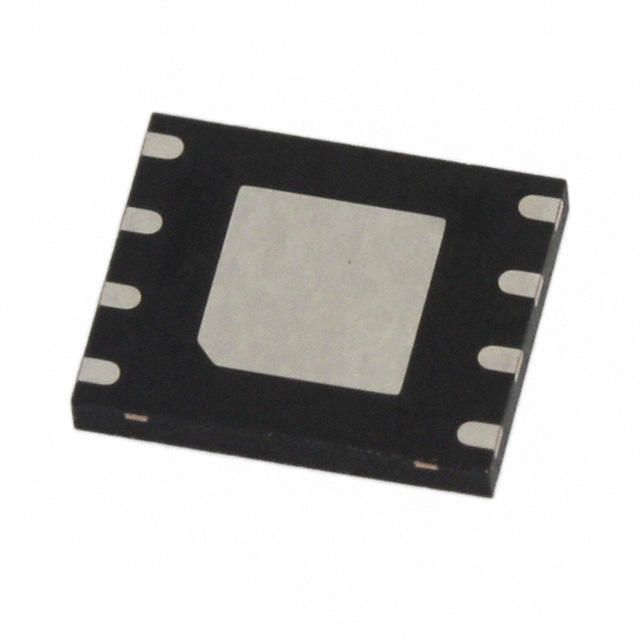

NVE Corp/Sensor Products AKL002-12 is a digital magnetoresistive switch from the AKL series, designed for specialized applications requiring precise magnetic field sensing. This component features a PWM output and operates within a wide supply voltage range of 4.5V to 36V, with a maximum supply current of 9mA and a maximum output current of 16mA. Packaged in an 8-TDFN (8-Thermal-enhanced Dual Flat No-lead) surface-mount configuration, it offers robust performance across an operating temperature range of -40°C to 150°C. The AKL002-12 is suitable for demanding environments found in industrial automation, automotive systems, and consumer electronics where reliable, non-contact switching based on magnetic field detection is critical. Its specialized function and wide operating parameters make it a valuable component for advanced design considerations.
Additional Information
Series: AKLRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 8-TDFN |
| Output Type | PWM |
| Polarization | - |
| Mounting Type | Surface Mount |
| Function | Special Purpose |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Voltage - Supply | 4.5V ~ 36V |
| Technology | Magnetoresistive |
| Sensing Range | - |
| Current - Output (Max) | 16mA |
| Current - Supply (Max) | 9mA |
| Supplier Device Package | 8-TDFN |
| Test Condition | - |
