AFL100-00
MAGNETIC SWITCH UNIPOLAR 8MSOPManufacturer: NVE Corp/Sensor Products
Categories: Switches (Solid State)
Quality Control: Learn More
NVE Corp/Sensor Products AFL Series magnetoresistive unipolar digital switch, part number AFL100-00. This surface-mount device features an open-collector output and operates from a 1.8V to 2.5V supply, drawing a maximum of 45µA quiescent current. The switch exhibits a typical trip point of 1.3mT and a release point of 0.1mT, responding to a south pole magnetic field. Its 8-MSOP package is suitable for high-density applications. The AFL100-00 is utilized in industries such as industrial automation and consumer electronics for sensing and switching applications. The maximum output current is 100µA.
Additional Information
Series: AFLRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Open Collector |
| Polarization | South Pole |
| Mounting Type | Surface Mount |
| Function | Unipolar Switch |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Voltage - Supply | 1.8V ~ 2.5V |
| Technology | Magnetoresistive |
| Sensing Range | 1.3mT Trip, 0.1mT Release |
| Current - Output (Max) | 100µA |
| Current - Supply (Max) | 45µA |
| Supplier Device Package | 8-MSOP |
| Test Condition | -20°C ~ 85°C |
Request a Quote
Clients Also Buy
AFL000-00E
MAGNETIC SWITCH UNIPOLAR 8MSOP
AFL000-10E
MAGNETIC SWITCH UNIPOLAR 6TDFN

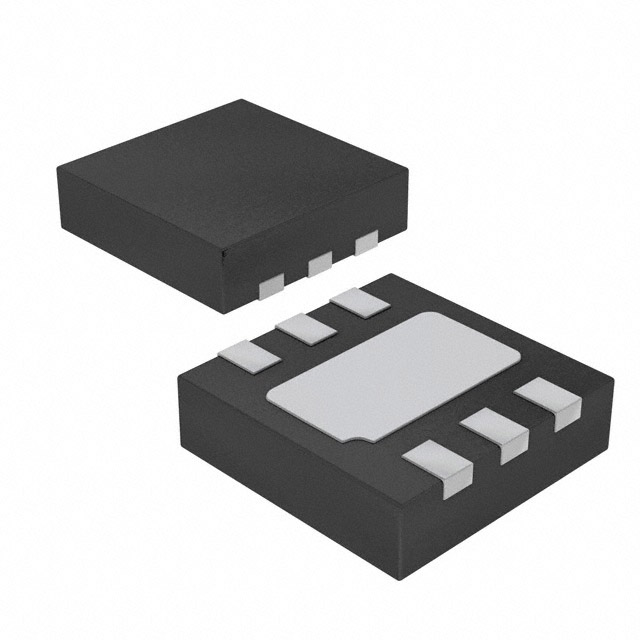

AFL006-10E
