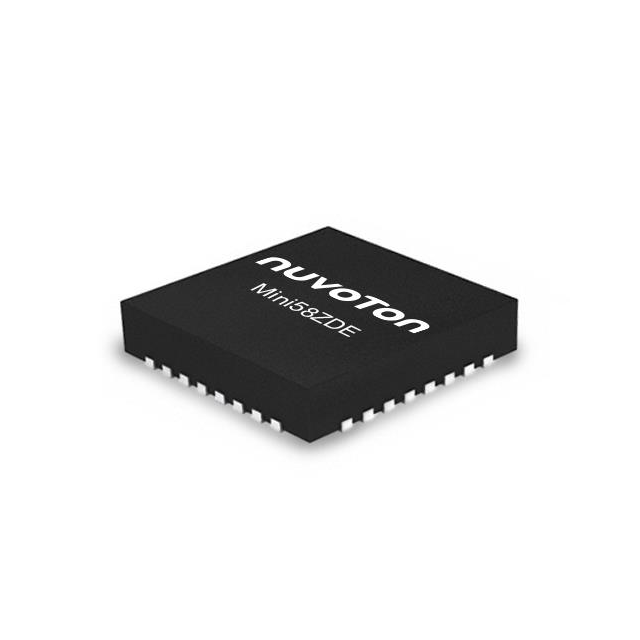

MINI58ZDE
IC MCU 32BIT 32KB FLASH 33QFNManufacturer: Nuvoton Technology Corporation
Categories: Microcontrollers
Quality Control: Learn More
Nuvoton Technology Corporation's NuMicro Mini58™ DE series microcontroller, part number MINI58ZDE, is a 32-bit ARM Cortex-M0 core-based device operating at up to 50MHz. This microcontroller features 32KB of FLASH program memory and 4KB of RAM. Connectivity options include I2C, SPI, and UART/USART interfaces. For analog interfacing, it incorporates an 8x10-bit Analog-to-Digital converter. The device offers 29 general-purpose I/O pins and includes peripherals such as Brown-out Detect/Reset, PWM generation, and a Watchdog Timer (WDT). The MINI58ZDE is supplied in a 33-QFN (5x5) package suitable for surface mounting and operates across an industrial temperature range of -40°C to 105°C. This component is well-suited for applications in industrial automation, consumer electronics, and IoT devices.
Additional Information
Series: NuMicro Mini58™ DERoHS Status: unknownManufacturer Lead Time: 20 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0 |
| Data Converters | A/D 8x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, PWM, WDT |
| Supplier Device Package | 33-QFN (5x5) |
| Number of I/O | 29 |
| Programmable | Not Verified |
