MINI54TAN
IC MCU 32BIT 16KB FLASH 32VFQFNManufacturer: Nuvoton Technology Corporation
Categories: Microcontrollers
Quality Control: Learn More
Nuvoton Technology Corporation's Mini51™ series microcontroller, part number MINI54TAN, is a 32-bit ARM® Cortex®-M0 microcontroller featuring a single-core architecture operating at up to 24MHz. This component includes 16KB of FLASH program memory (16K x 8) and 2KB of RAM. The MINI54TAN offers robust connectivity options, supporting I2C, IrDA, SPI, and UART/USART interfaces. For analog signal processing, it integrates 8 channels of 10-bit A/D conversion. Peripherals include Brown-out Detect/Reset, Power-On Reset (POR), Pulse Width Modulation (PWM), and a Watchdog Timer (WDT). With 29 General Purpose Input/Output (GPIO) pins, it is suitable for surface mount applications. The device operates within a temperature range of -40°C to 85°C (TA) and utilizes an internal oscillator. It is supplied in a 32-VFQFN Exposed Pad package. This microcontroller finds application in industrial control, consumer electronics, and smart home devices.
Additional Information
Series: NuMicro Mini51™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

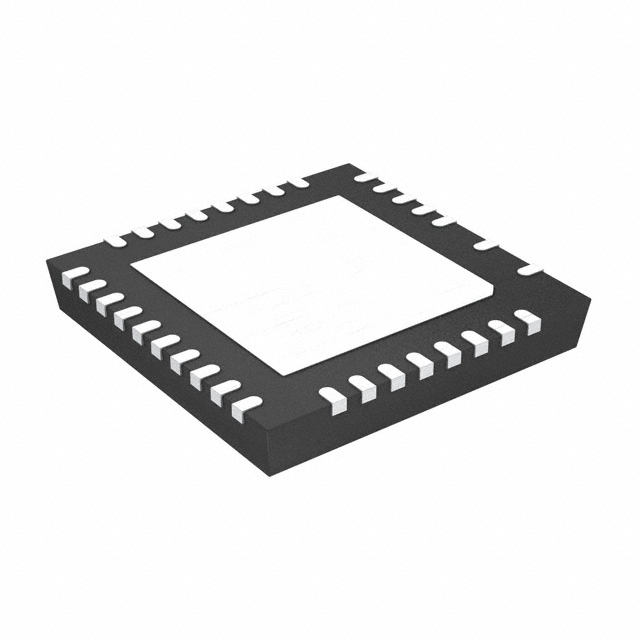

| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 24MHz |
| Program Memory Size | 16KB (16K x 8) |
| RAM Size | 2K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0 |
| Data Converters | A/D 8x10b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 29 |
| Programmable | Not Verified |
