M058SFAN
IC MCU 32BIT 32KB FLASH 20TSSOPManufacturer: Nuvoton Technology Corporation
Categories: Microcontrollers
Quality Control: Learn More
Nuvoton Technology Corporation NuMicro M058S series microcontroller, part number M058SFAN. This 32-bit ARM Cortex-M0 core microcontroller operates at 50MHz and features 32KB of FLASH program memory with 4KB of RAM. Connectivity options include I2C, IrDA, LINbus, SPI, and UART/USART. The device includes an 8-channel 12-bit Analog-to-Digital converter and 4KB of EEPROM. Integrated peripherals consist of Brown-out Detect/Reset, Low Voltage Reset (LVR), Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The M058SFAN is housed in a 20-TSSOP package suitable for surface mounting and operates within an ambient temperature range of -40°C to 85°C. This component is commonly utilized in industrial control, consumer electronics, and automotive applications.
Additional Information
Series: NuMicro M058SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 4K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | ARM® Cortex®-M0 |
| Data Converters | A/D 8x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LVR, POR, PWM, WDT |
| Supplier Device Package | 20-TSSOP |
| Number of I/O | 14 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

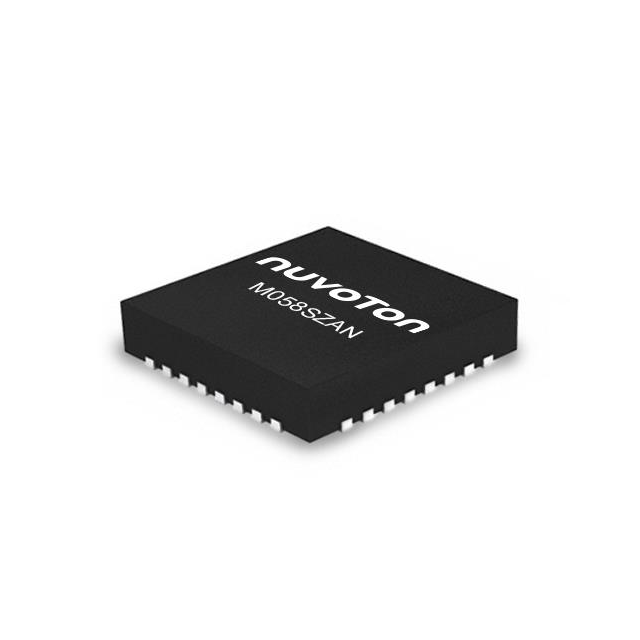

M058SZAN
