W681310SG
IC VOICEBAND CODEC 3V 1CH 20SOPManufacturer: Nuvoton Technology Corporation
Categories: CODECS
Quality Control: Learn More
The Nuvoton Technology Corporation W681310SG is an 8-bit voiceband codec featuring a PCM Interface. This monolithic component offers a single channel for audio processing, supporting a PCM audio interface for digital data transfer. Designed for surface mount applications, it is housed in a 20-SOIC package with a 7.50mm width. The W681310SG operates across a wide temperature range of -40°C to 85°C and is powered by analog and digital supplies ranging from 2.7V to 5.25V. This device finds application in telecommunications and consumer electronics where efficient voice digitization and synthesis are critical. The component is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | PCM |
| Data Interface | PCM Audio Interface |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Resolution (Bits) | 8 b |
| Dynamic Range, ADCs / DACs (db) Typ | - |
| Number of ADCs / DACs | 1 / 1 |
| S/N Ratio, ADCs / DACs (db) Typ | - |
| Sigma Delta | No |
| Supplier Device Package | 20-SOP |
Request a Quote
Clients Also Buy
W681360WG
IC VOICEBND CODEC 3V 1CH 20TSSOP
W681512S
IC VOICEBAND CODEC 5V 1CH 20SOP

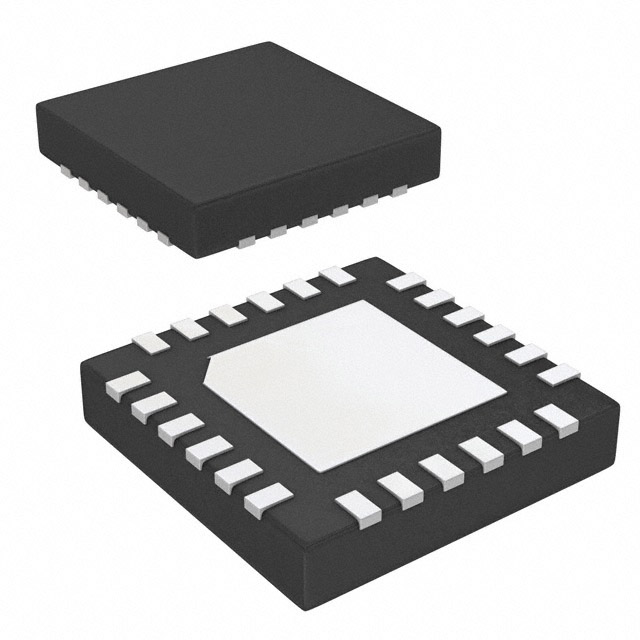

WAU8814YG TR
