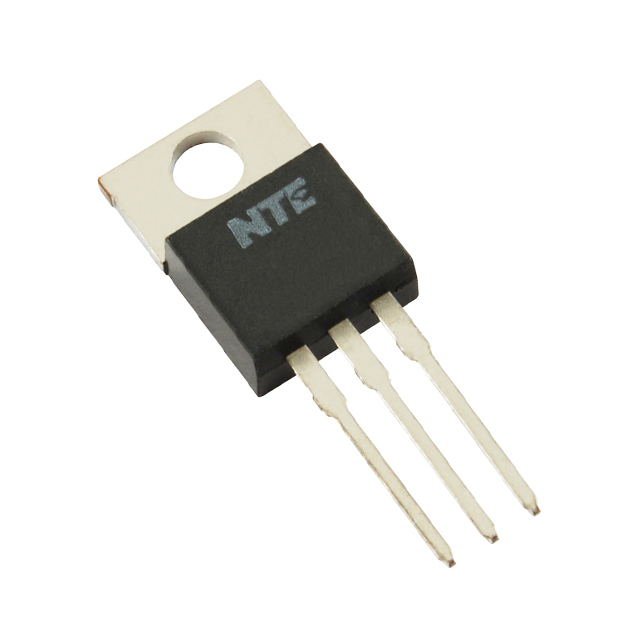

NTE969
IC REG LINEAR -15V 1A TO220Manufacturer: NTE Electronics, Inc
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Negative Fixed 1 Output 1A TO-220
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | TO-220-3 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 1A |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Output Configuration | Negative |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | -35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | -15V |
| Control Features | - |
| PSRR | 60dB (120Hz) |
| Voltage Dropout (Max) | 2V @ 1A |
| Protection Features | Over Current, Over Temperature |
