NC1M120C75HTNG
SiC MOSFET N 1200V 75mohm 47A 4Manufacturer: NovuSem
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 1200 V 47A (Tc) 288W (Ta) Through Hole TO-247-4L
Additional Information
Series: NC1MRoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 47A (Tc) |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 20A, 20V |
| Power Dissipation (Max) | 288W (Ta) |
| Vgs(th) (Max) @ Id | 2.8V @ 5mA |
| Supplier Device Package | TO-247-4L |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Vgs (Max) | +20V, -5V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1450 pF @ 1000 V |
Request a Quote
Clients Also Buy
NC1M120C12HTNG
SiC MOSFET N 1200V 12mohm 214A

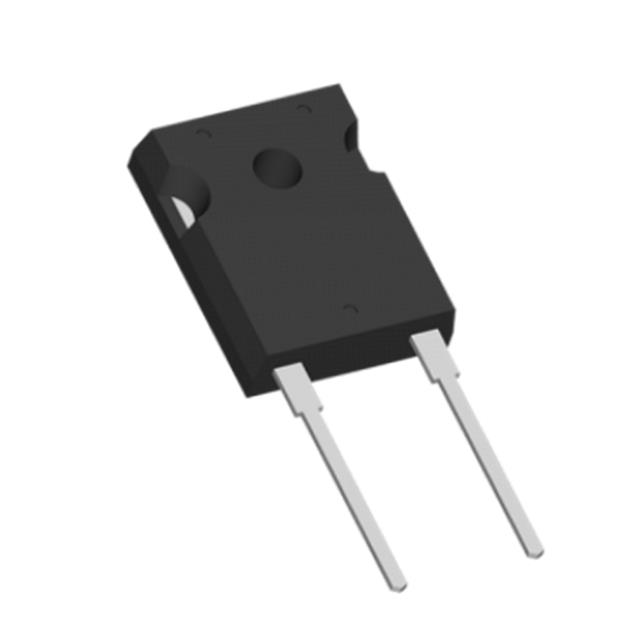

NC1D120C30KTNG
