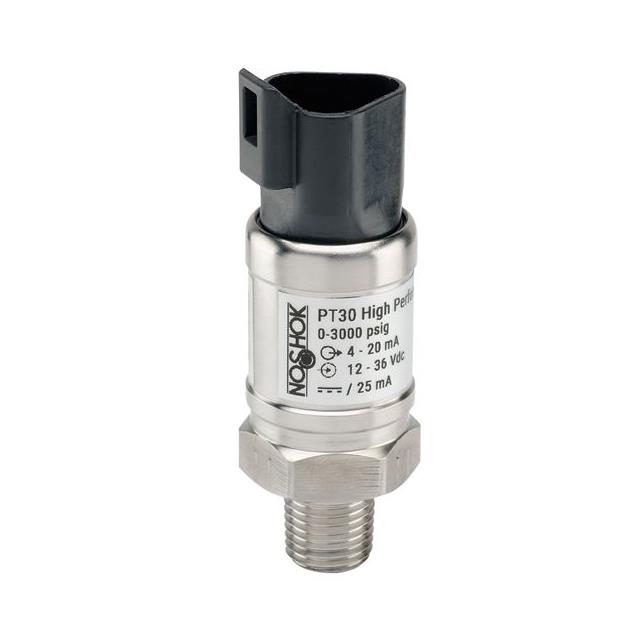

PT30-5000PSIG-1-1-50-46
High Performance Fixed Range PreManufacturer: NOSHOK, Inc.
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 5000PSI (34473.79kPa) Gauge Male - 7/16"" (11.11mm) SAE 4 ~ 20 mA Cylinder, Threaded
Additional Information
Series: PT30RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder, Threaded |
| Output Type | Analog Current |
| Output | 4 ~ 20 mA |
| Operating Pressure | 5000PSI (34473.79kPa) |
| Pressure Type | Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Deutsch, 3 Pin |
| Voltage - Supply | 12V ~ 36V |
| Port Size | Male - 7/16"" (11.11mm) SAE |
| Applications | Industrial Automation |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 15000PSI (103421.36kPa) |
