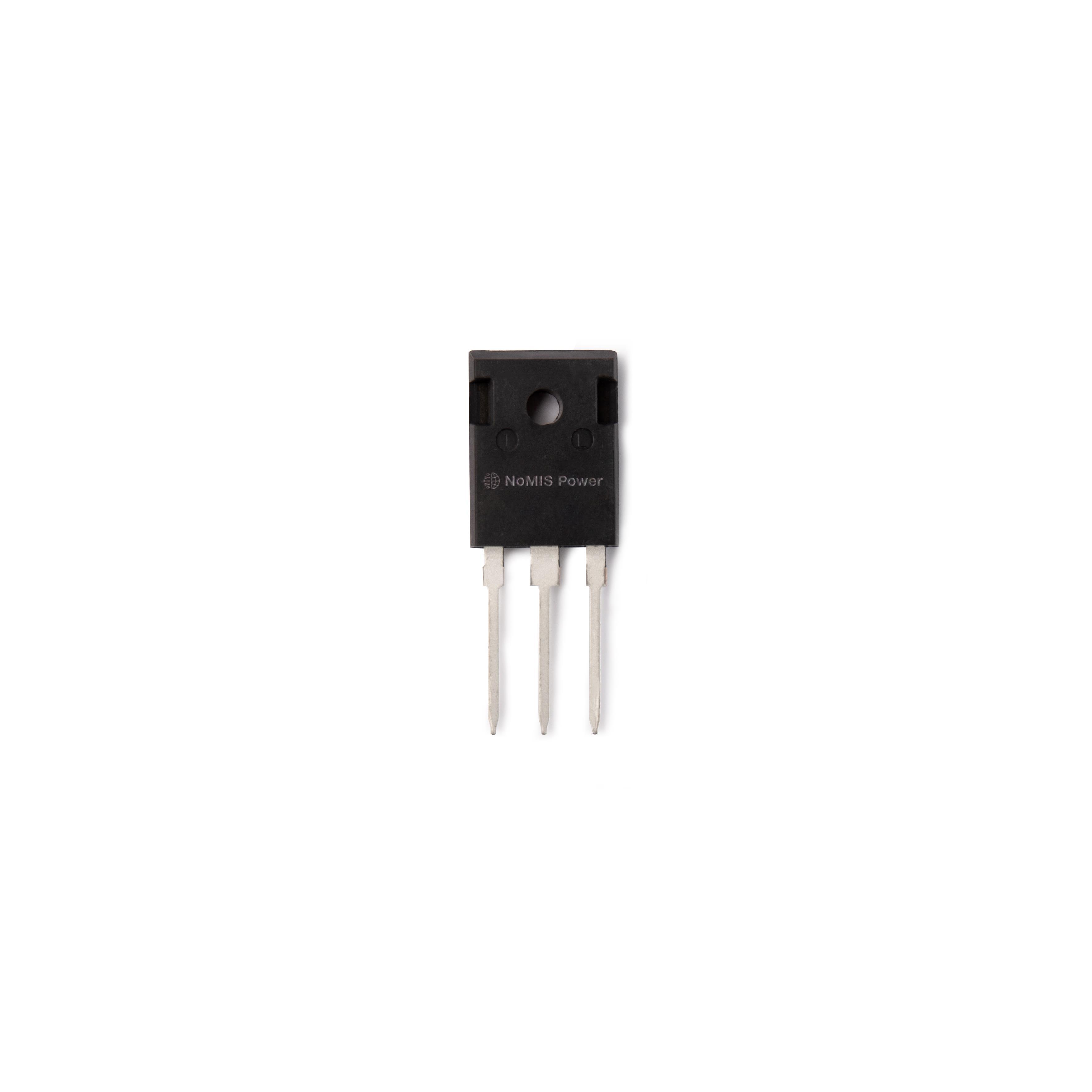

N3T035MP120D
1200 V, 35 M SIC MOSFET, TO-247Manufacturer: NoMIS Power
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 1200 V 76A 319W (Tc) Through Hole TO-247-3L
Additional Information
Series: 1200RoHS Status: unknownManufacturer Lead Time: Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 76A |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 30A, 20V |
| FET Feature | - |
| Power Dissipation (Max) | 319W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 15mA |
| Supplier Device Package | TO-247-3L |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Vgs (Max) | +20V, -5V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 126 nC @ 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2204 pF @ 800 V |
| Qualification | - |
