YB02WKW01-05-CB
INCAND PANEL INDICATOR 5VManufacturer: NKK Switches
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

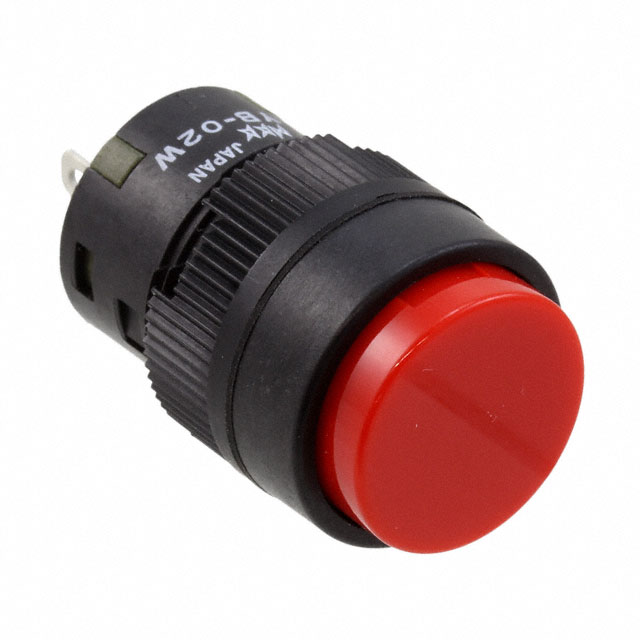

NKK Switches YB Series incandescent panel indicator, part number YB02WKW01-05-CB. This 5V unit features a 115mA current rating and a quick connect termination with 0.110" (2.8mm) tab size. The round, red lens with a flat top measures 15.00mm in diameter and is designed for a 0.63" (16.00mm) round panel cutout. This component is commonly utilized in industrial control panels, instrumentation, and consumer electronics where reliable visual status indication is critical. The YB Series offers robust construction for demanding applications.
Additional Information
Series: YBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 115mA |
| Voltage | 5V |
| Type | Incandescent |
| Millicandela Rating | - |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | Red |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.63"" (16.00mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | - |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 15.00mm Dia |
Request a Quote
