LB03KW01-12-CJ
IND PB ILLUM RECT BLACK 12V LAMPManufacturer: NKK Switches
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

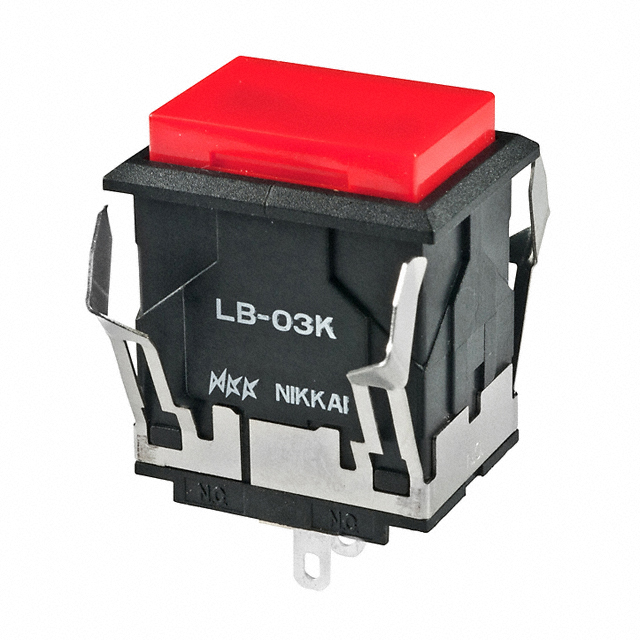

NKK Switches LB Series incandescent panel indicator, part number LB03KW01-12-CJ. This illuminated pushbutton features a black rectangular housing with a red lens, designed for 12V operation with a 60mA current draw. The unit utilizes a quick connect termination style with 0.110" (2.8mm) connectors. Its panel cutout dimensions are 0.88" x 0.64" (22.35mm x 16.26mm) rectangular. This component is commonly found in industrial control panels, signaling equipment, and various instrumentation applications requiring clear visual status indication.
Additional Information
Series: LBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Current | 60mA |
| Voltage | 12V |
| Type | Incandescent |
| Millicandela Rating | - |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | Red |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | AC |
| Panel Cutout Dimensions | 0.88"" x 0.64"" (22.35mm x 16.26mm) |
| Wavelength - Peak | - |
| Lens Transparency | Clear |
| Lamp Color | Red |
| Panel Cutout Shape | Rectangle |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 19.40mm x 13.20mm |
