KB03KW01-6G-JB
SW PB ILLUM RECT BLU CLR/WHT SLDManufacturer: NKK Switches
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

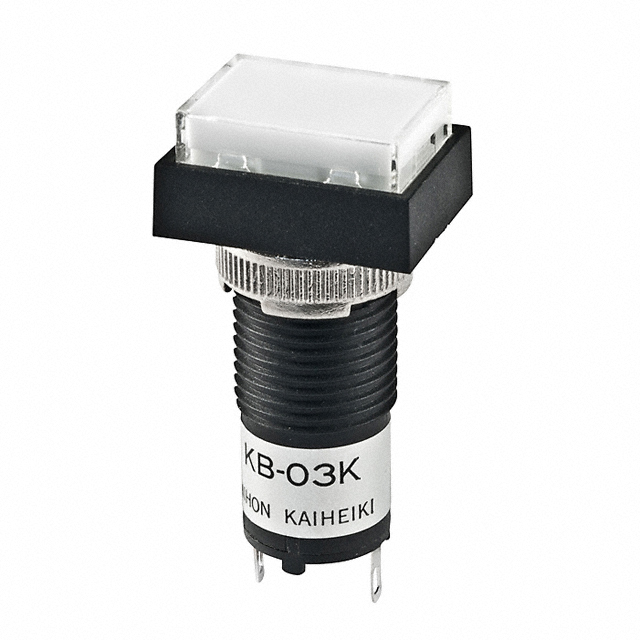

NKK Switches KB Series illuminated pushbutton switch, part number KB03KW01-6G-JB. This panel mount component features a blue LED indicator with a white rectangular lens, offering clear visual feedback. Designed for panel cutouts of 0.48 inches (12.19mm) round. The LED operates at a typical forward voltage of 3.3V and a maximum current of 30mA. This component is suitable for applications in industrial automation, control panels, and instrumentation where reliable visual status indication is critical. Supplied in tray packaging.
Additional Information
Series: KBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Current | 30mA |
| Voltage | 3.3V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | - |
| Lens Color | White |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.48"" (12.19mm) |
| Wavelength - Peak | - |
| Lens Transparency | Clear |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 16.10mm x 11.60mm |
