KB03KW01-6B-JB
SWITCH IND PB RECT WHITE LEDManufacturer: NKK Switches
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

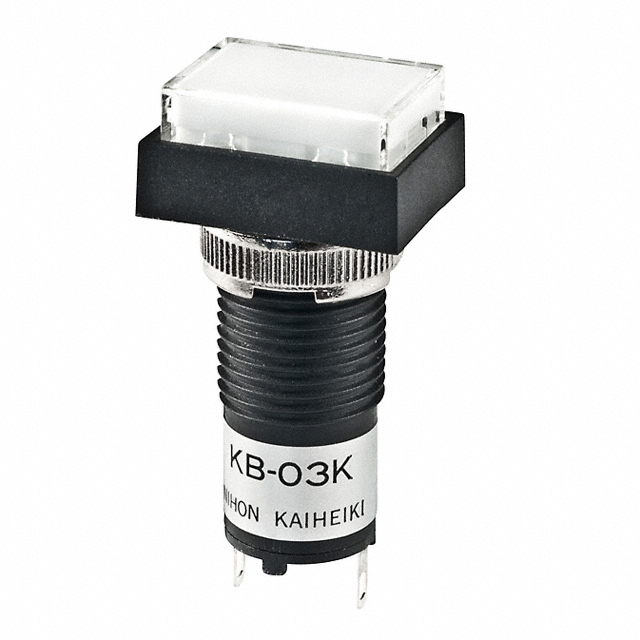

NKK Switches KB Series KB03KW01-6B-JB is a rectangular LED panel indicator featuring a white, clear lens with a flat top. This component operates with a typical forward voltage (Vf) of 3.6V and a maximum forward current (If) of 30mA. Designed for panel mounting, it requires a round 0.48" (12.19mm) cutout. The illuminated indicator is white, driven by a white LED with a clear lens. This component finds application in industrial automation, control panels, and instrumentation.
Additional Information
Series: KBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Current | 30mA |
| Voltage | 3.6V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | - |
| Lens Color | White |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.48"" (12.19mm) |
| Wavelength - Peak | - |
| Lens Transparency | Clear |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 16.10mm x 11.60mm |
