KB02KW01-6B-JB
SW IND PB RND WHTE LED WHITE CAPManufacturer: NKK Switches
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

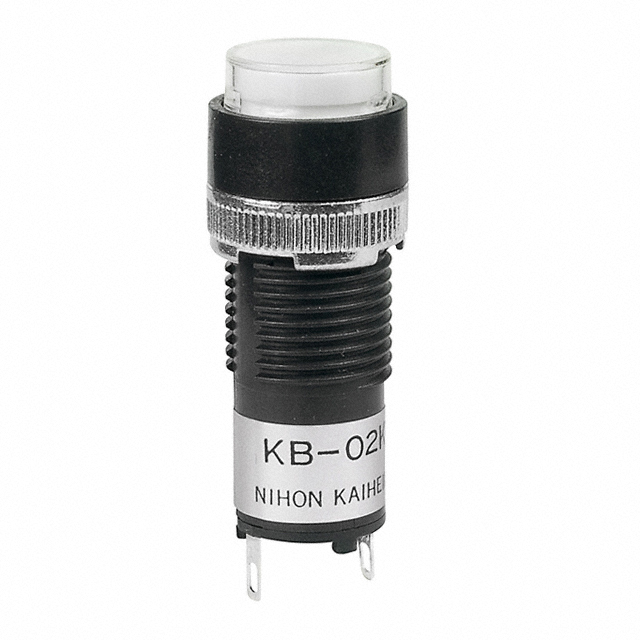

NKK Switches KB02KW01-6B-JB is a panel mount LED indicator from the KB series. This component features a white, round lens with a flat top, measuring 11.60mm in diameter, and a clear lens transparency. It operates with a typical forward voltage (Vf) of 3.6V and a maximum forward current (If) of 30mA. The indicator is designed for a panel cutout of 0.48 inches (12.19mm) with a round shape. This LED indicator is commonly utilized in industrial control, automation, and medical equipment applications.
Additional Information
Series: KBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Current | 30mA |
| Voltage | 3.6V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | - |
| Lens Color | White |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.48"" (12.19mm) |
| Wavelength - Peak | - |
| Lens Transparency | Clear |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 11.60mm Dia |
