KB02KW01-6B-CC
SW IND PB RND WHT LED RED SLDManufacturer: NKK Switches
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

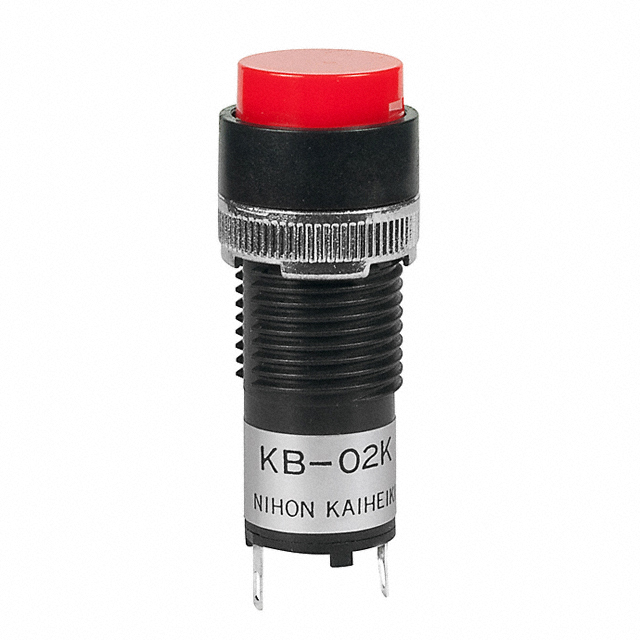

NKK Switches KB series illuminated pushbutton, part number KB02KW01-6B-CC. This panel indicator features a white diffused LED with a red lens, providing clear visual feedback. Operating at a typical forward voltage of 3.6V and a maximum current of 30mA, this component is suitable for demanding applications. The round, flat-top lens has a diameter of 11.60mm, designed for a 0.48-inch (12.19mm) round panel cutout. This high-quality component from NKK Switches is commonly utilized in industrial control systems, automation, and equipment monitoring where reliable status indication is critical.
Additional Information
Series: KBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Current | 30mA |
| Voltage | 3.6V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | - |
| Lens Color | Red |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.48"" (12.19mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 11.60mm Dia |
