KB02KW01-5D24-JD
SW PB ILLUM RND AMB CLR/AMB SLDManufacturer: NKK Switches
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

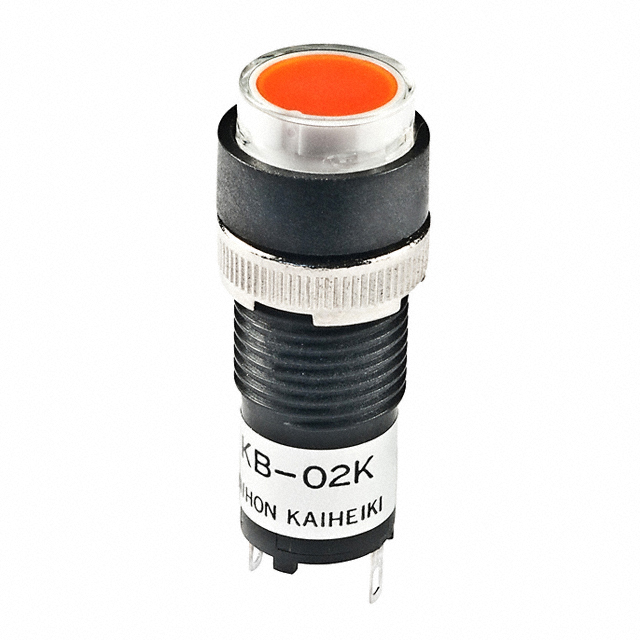

NKK Switches KB Series KB02KW01-5D24-JD is a panel mount LED indicator with a round, clear lens and amber illumination. This component operates at a nominal voltage of 24V and draws a current of 10mA. The lens, measuring 11.60mm in diameter, features a flat top and is designed for clear visibility with amber light output. The unit requires a 0.48" (12.19mm) round panel cutout. It is suitable for various industrial applications requiring reliable visual feedback. The component is supplied in tray packaging.
Additional Information
Series: KBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Current | 10mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | - |
| Lens Color | Amber |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | AC |
| Panel Cutout Dimensions | 0.48"" (12.19mm) |
| Wavelength - Peak | - |
| Lens Transparency | Clear |
| Lamp Color | Amber |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 11.60mm Dia |
