KB01KW01-12-BB
SW PB ILLUM SQ WHITE SOLDER MNTManufacturer: NKK Switches
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

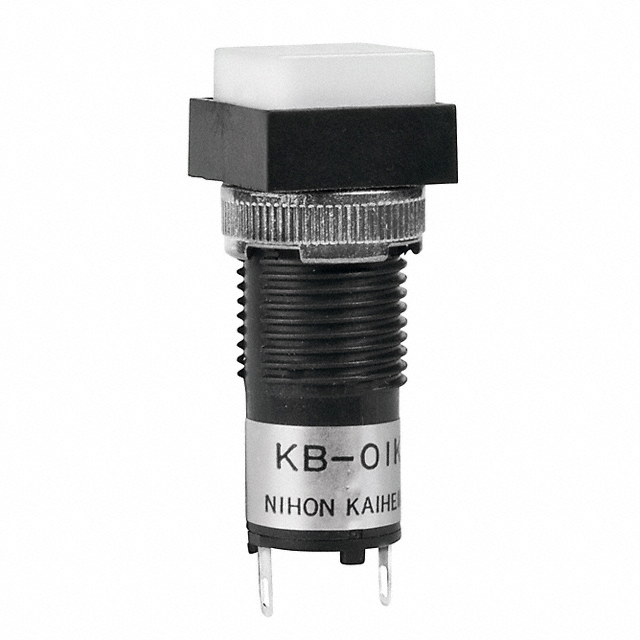

NKK Switches KB Series KB01KW01-12-BB is a panel mount incandescent lamp indicator with a white diffused square lens. This component is designed for 12V operation with a current draw of 60mA. It features a standard panel cutout diameter of 0.48 inches (12.19mm), accommodating round cutouts. The white diffused lens and white lamp color provide clear illumination suitable for status indication in various industrial and commercial applications. Manufactured by NKK Switches, this electronic component is supplied in tray packaging.
Additional Information
Series: KBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Current | 60mA |
| Voltage | 12V |
| Type | Incandescent |
| Millicandela Rating | - |
| Termination Style | - |
| Lens Color | White |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | AC |
| Panel Cutout Dimensions | 0.48"" (12.19mm) |
| Wavelength - Peak | - |
| Lens Transparency | Diffused |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Square with Flat Top |
| Lens Size | 11.60mm |
