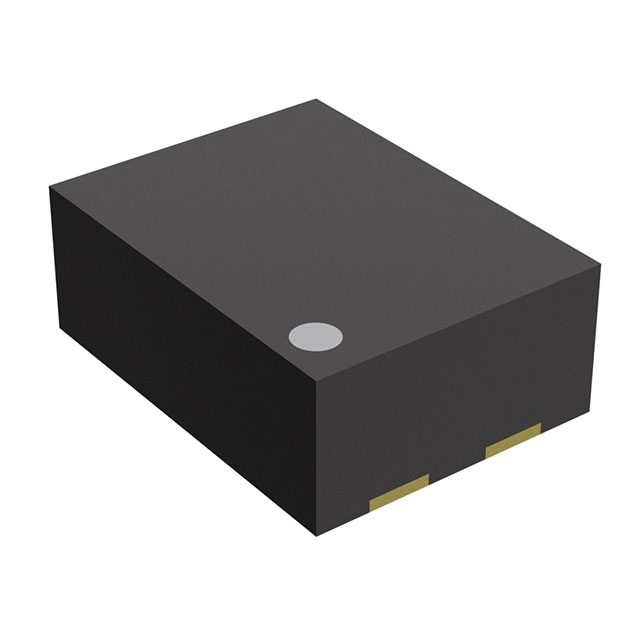

R5527K001C-TR
IC PWR SWITCH N-CH 1:1 DFN1612Manufacturer: Nisshinbo Micro Devices Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 3A DFN(PL)1612-4D
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UFDFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | - |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | - |
| Rds On (Typ) | 48mOhm |
| Input Type | Inverting |
| Voltage - Load | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | DFN(PL)1612-4D |
| Fault Protection | Reverse Current |
