NJU6385KG1-TE3
XTAL OSC XO 50.0000MHZ CMOS SMDManufacturer: Nisshinbo Micro Devices Inc.
Categories: Oscillators
Quality Control: Learn More

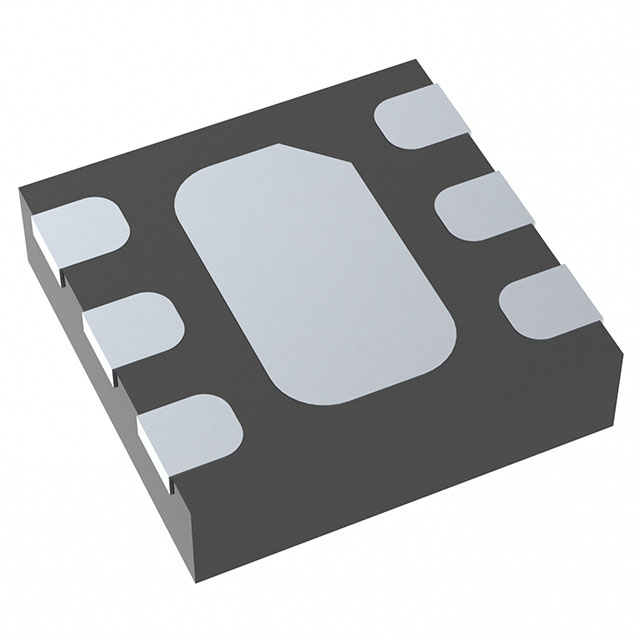

Nisshinbo Micro Devices Inc. NJU6385KG1-TE3 is a 50 MHz Crystal Oscillator (XO) with CMOS output. This device operates from a 3.3V supply and features a standby function for power down capabilities. The frequency stability is rated at ±1ppm. Designed for surface mount applications, it is provided in a compact 6-XFDFN exposed pad package (DFN6-G1) measuring 1.60mm x 1.60mm with a maximum seated height of 0.45mm. The NJU6385KG1-TE3 draws a maximum supply current of 9.9mA. It is supplied in tape and reel packaging. This component finds application in various industries including telecommunications and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN Exposed Pad |
| Size / Dimension | 0.063"" L x 0.063"" W (1.60mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Standby (Power Down) |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 125°C |
| Frequency Stability | ±1ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 9.9mA |
| Supplier Device Package | DFN6-G1(ESON6-G1) |
| Height - Seated (Max) | 0.018"" (0.45mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 50 MHz |
| Base Resonator | Crystal |
