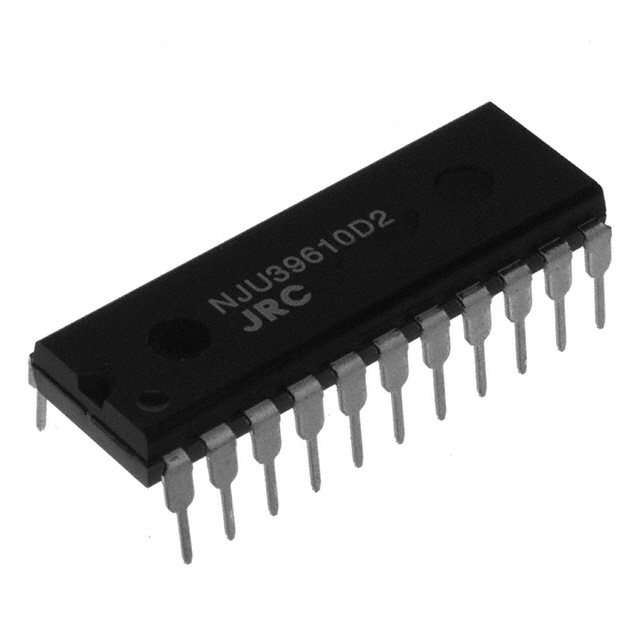

NJU39610D2
IC MTRDRV BIPLR 4.75-5.25V 22DIPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJU39610D2 is a bipolar stepper motor driver IC featuring a parallel interface. This component operates within a supply voltage range of 4.75V to 5.25V and is housed in a 22-DIP package, suitable for through-hole mounting. The NJU39610D2 provides pre-driver output configuration with four half-bridge drivers, enabling precise commutation and direction management for bipolar stepper motors. It supports step resolutions exceeding 256 microsteps, facilitating smooth and accurate motor control. This device is commonly utilized in applications requiring robust motor driving capabilities, including industrial automation and consumer electronics. The operating temperature range is -20°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 18 week(s)Product Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 22-DIP (0.400"", 10.16mm) |
| Mounting Type | Through Hole |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (4) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | - |
| Voltage - Load | - |
| Supplier Device Package | 22-DIP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | >256 Microsteps |
