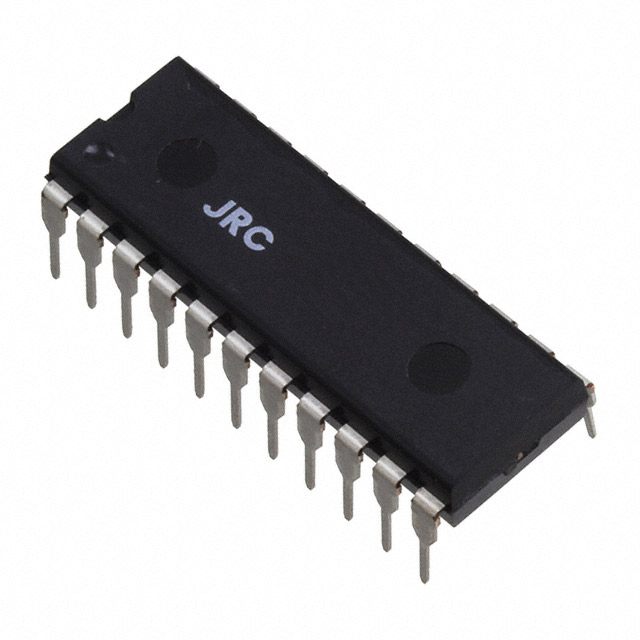

NJM3774D2
IC MTRDRV BIPLR 4.75-5.25V 22DIPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJM3774D2 is a bipolar stepper motor driver IC designed for robust performance in demanding applications. This fully integrated device incorporates both control and power stages, simplifying system design. It features a parallel interface for command input and offers a maximum output current of 1A. The NJM3774D2 supports bipolar stepper motors with step resolutions of full and half steps.
Operating within a supply voltage range of 4.75V to 5.25V, this component is engineered for a load voltage of 10V to 40V. Its output configuration includes four half-bridge drivers. The 22-DIP (0.400", 10.16mm) package is suitable for through-hole mounting. The operating temperature range is specified from -20°C to 125°C (TJ). This device finds utility in general-purpose applications across various industries requiring precise motor control.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 18 week(s)Product Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 22-DIP (0.400"", 10.16mm) |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1A |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Bipolar |
| Voltage - Load | 10V ~ 40V |
| Supplier Device Package | 22-DIP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2 |
Request a Quote
Clients Also Buy
NJM37717D2

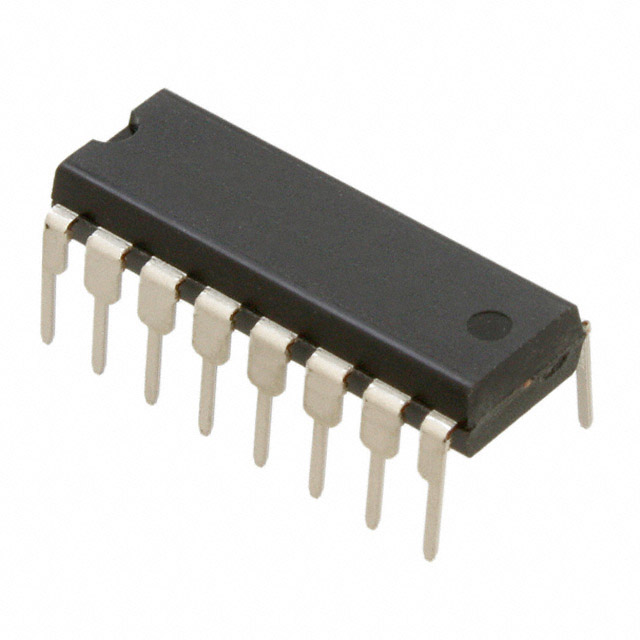

IC MTRDRV BIPLR 4.75-5.25V 16DIP
NJM2670E3-TE2

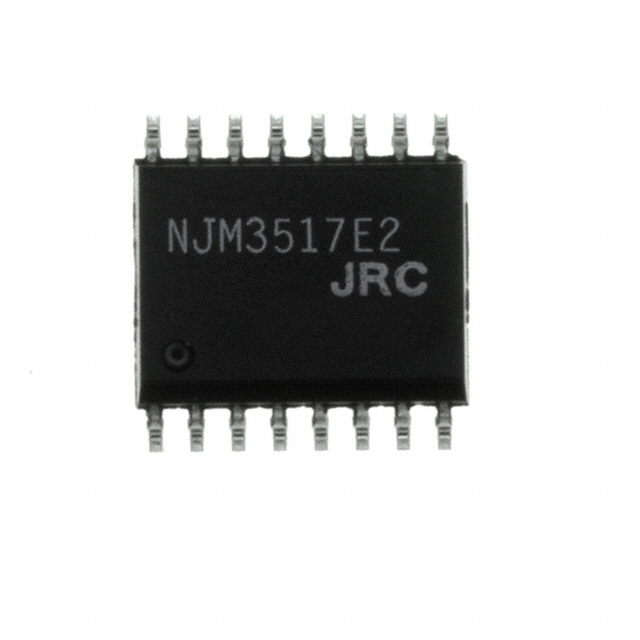

IC H-BRIDGE DRIVER DUAL 24-EMP
