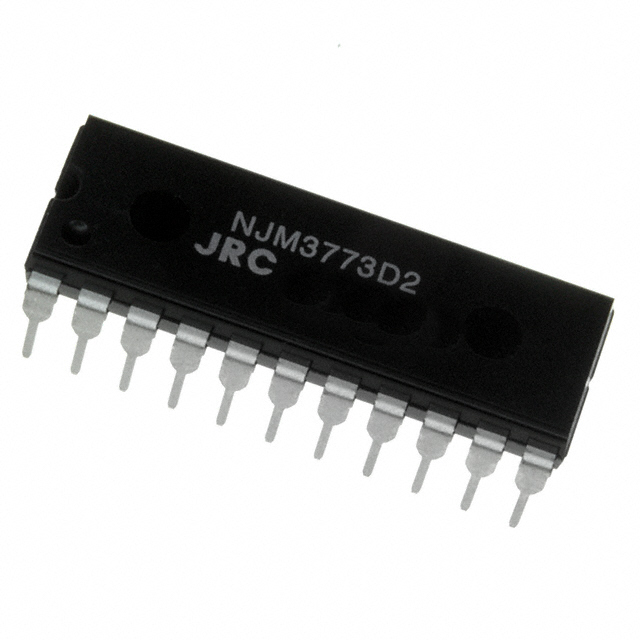

NJM3773D2
IC MTRDRV BIPLR 4.75-5.25V 22DIPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJM3773D2 is a bipolar stepper motor driver featuring a fully integrated control and power stage. This device operates from a supply voltage of 4.75V to 5.25V and supports load voltages from 10V to 40V. Its parallel interface simplifies integration into system designs. The NJM3773D2 is capable of driving bipolar stepper motors with output currents up to 750mA. The output configuration includes four half-bridges, enabling full step and half-step control for precise motor positioning. Packaged in a 22-DIP through-hole form factor, this component is suitable for applications requiring robust motor control. The operating temperature range is -20°C to 125°C (TJ). This motor driver is commonly employed in general-purpose applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 22-DIP (0.400"", 10.16mm) |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 750mA |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Bipolar |
| Voltage - Load | 10V ~ 40V |
| Supplier Device Package | 22-DIP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2 |
