NJM37717E2

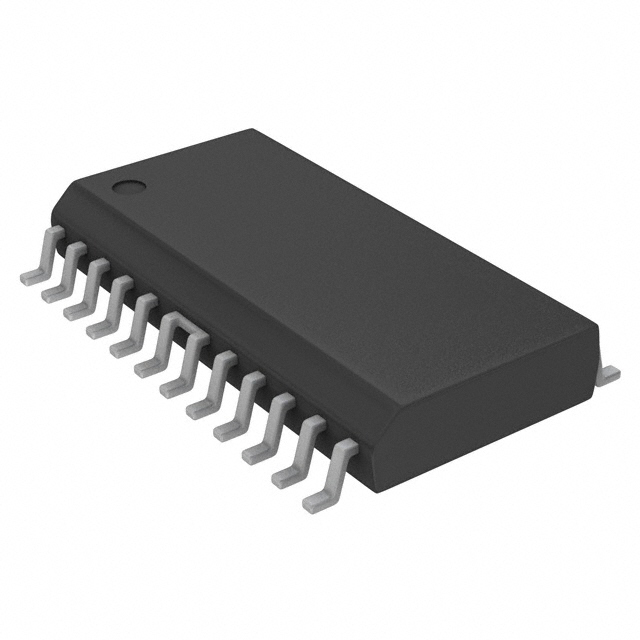

IC MTRDRV BIPLR 4.75-5.25V 24EMPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJM37717E2 is a bipolar stepper motor driver featuring a fully integrated control and power stage. This device offers parallel interface for straightforward control and supports bipolar stepper motor configurations with selectable step resolutions of 1 and 1/2 steps. It operates within a supply voltage range of 4.75V to 5.25V, with a load voltage capability of 10V to 56V. The output stage is configured as two half-bridges, capable of delivering up to 1A of output current. Designed for surface mount applications, the NJM37717E2 is housed in a 24-SOIC package and operates across an ambient temperature range of -20°C to 125°C. This component finds utility in general-purpose applications across various industries requiring precise motor control.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1A |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Bipolar |
| Voltage - Load | 10V ~ 56V |
| Supplier Device Package | 24-EMP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2 |
