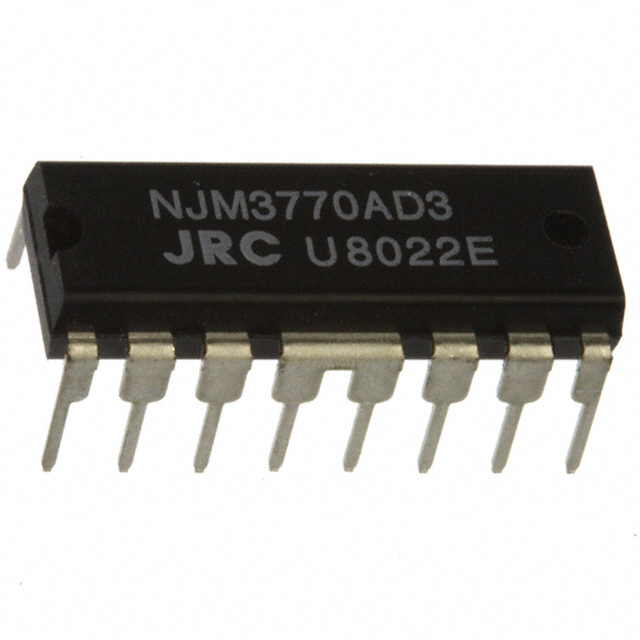

NJM3770AD3
IC MTRDRV BIPLR 4.75-5.25V 16DIPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The Nisshinbo Micro Devices Inc. NJM3770AD3 is a bipolar stepper motor driver with a parallel interface, suitable for through-hole mounting in a 16-DIP Batwing package. This device integrates control and power stages, offering a fully integrated driver solution. It supports bipolar stepper motor types and provides half-bridge (2) output configurations. Operating within a supply voltage range of 4.75V to 5.25V and a load voltage range of 10V to 40V, the NJM3770AD3 delivers an output current of 1.5A. Its operating temperature range is -20°C to 125°C (TJ). This component is utilized in general-purpose applications and supports step resolutions of 1 and 1/2.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 18 week(s)Product Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.325"", 8.25mm), 12 Leads + 2 Fins |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.5A |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Bipolar |
| Voltage - Load | 10V ~ 40V |
| Supplier Device Package | 16-DIP Batwing |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2 |
