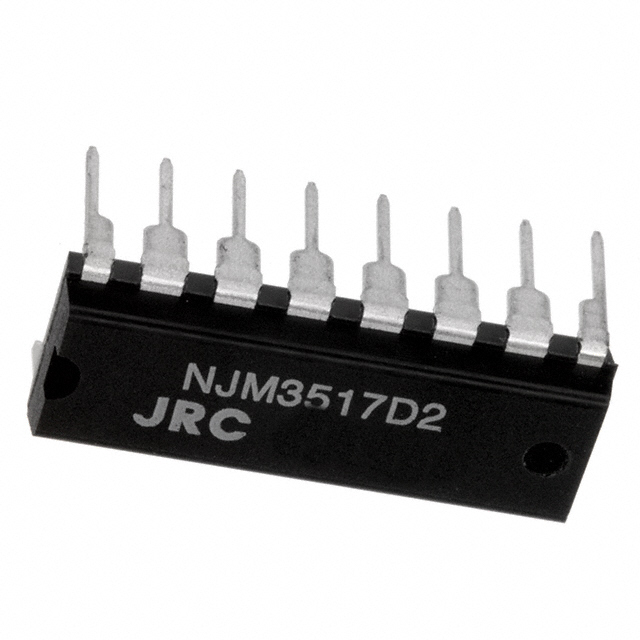

NJM3517D2
IC MOTOR DRIVER UNIPOLAR 16DIPManufacturer: Nisshinbo Micro Devices Inc.
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Nisshinbo Micro Devices Inc. NJM3517D2 is a unipolar stepper motor driver IC designed for bi-level, parallel interface control. This component features an integrated control and power stage, simplifying system design. It operates with a load voltage range of 10V to 40V and a supply voltage of 4.75V to 5.25V. The NJM3517D2 supports step resolutions of 1 and 1/2, and can drive unipolar stepper motors with an output current of 350mA per phase. Packaged in a 16-DIP (0.325", 8.25mm) through-hole configuration, it is suitable for applications operating within a temperature range of -20°C to 125°C (TJ). This device is commonly utilized in general-purpose applications where precise motor control is required.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.325"", 8.25mm) |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 350mA |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Output Configuration | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Bi-Level |
| Voltage - Load | 10V ~ 40V |
| Supplier Device Package | 16-DIP |
| Motor Type - Stepper | Unipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2 |
